NSN 2815-00-499-4233
Part Details | VALVE TAPPET ADJUSTING SCREW
2815-00-499-4233 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.
Alternate Parts: P211882, 2815-00-499-4233, 00-499-4233, 2815004994233, 004994233
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-499-4233 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
REFERENCE DRAWINGS & PICTURES

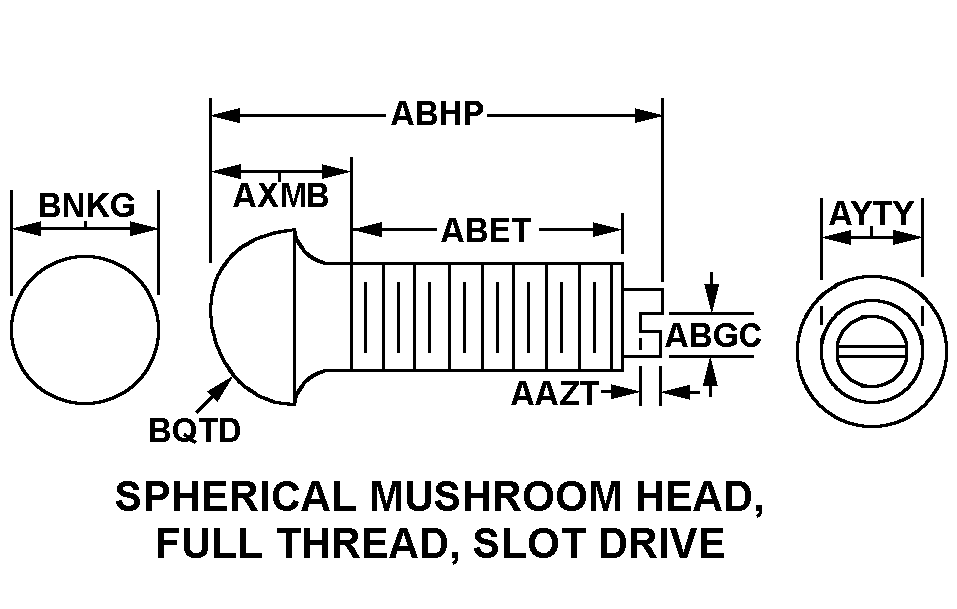

SPHERICAL MUSHROOM HEAD, FULL THREAD, SLOT DRIVE
Cross Reference | NSN 2815-00-499-4233
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P211882 | 17572 | STERLING ENGINE CO INC |
Technical Data | NSN 2815-00-499-4233
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | CASEHARDENED |
| STYLE DESIGNATOR | SPHERICAL MUSHROOM HEAD, FULL THREAD, SLOT DRIVE |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| SLOT WIDTH | 0.075 INCHES NOMINAL |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| END LENGTH | 0.625 INCHES NOMINAL |
| SMALLEST DIAMETER | 0.418 INCHES NOMINAL |
| END LARGEST DIAMETER | 0.747 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.375 INCHES NOMINAL |
| THREAD LENGTH | 1.065 INCHES |
| THREAD SIZE | 1/2-20 |
| THREAD SERIES | UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
