NSN 2815-00-898-0308
Part Details | VALVE SPRING RETAINER LOCK
2815-00-898-0308 A metal item designed for the purpose of securing an engine or compressor valve and positioning the valve spring or valve spring retainer. Excludes cotter pins, straight pins, keys and washers.
Alternate Parts: 4670090, 2815-00-898-0308, 00-898-0308, 2815008980308, 008980308
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1962 | 00-898-0308 | 15883 ( LOCK, VALVE SPRING RETAINER ) |
REFERENCE DRAWINGS & PICTURES

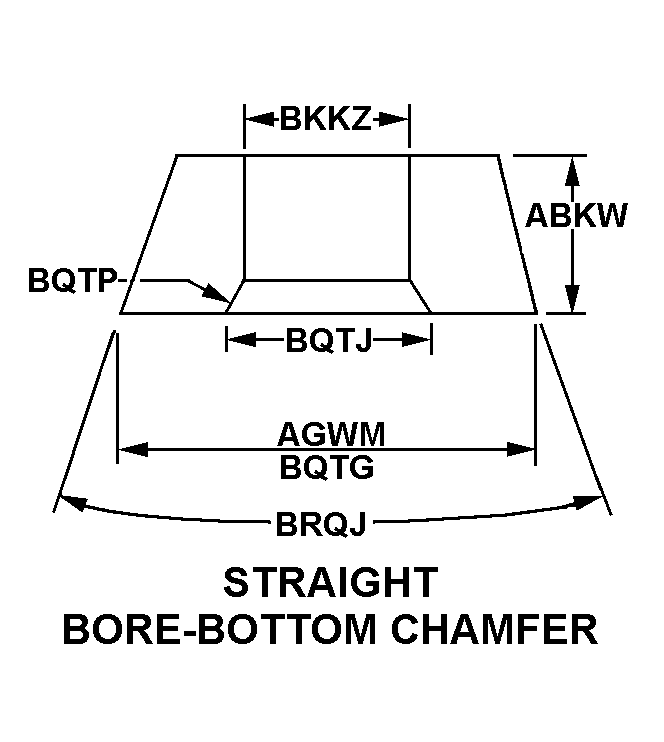

STRAIGHT BORE-BOTTOM CHAMFER
Cross Reference | NSN 2815-00-898-0308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4670090 | 6N299 | AGCO CORPPARTS OPN |
Technical Data | NSN 2815-00-898-0308
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | STRAIGHT BORE-BOTTOM CHAMFER |
| OVERALL HEIGHT | 0.752 INCHES NOMINAL |
| LARGEST OUTSIDE DIAMETER | 0.774 INCHES NOMINAL |
| MINIMUM INSIDE DIAMETER | 0.370 INCHES |
| LARGEST OUTSIDE WIDTH | 0.822 INCHES NOMINAL |
| LARGEST BOTTOM COUNTERSINK DIAMETER | 0.513 INCHES NOMINAL |
| BOTTOM COUNTERSINK INCLUDED ANGLE IN DEG | 7.0 |
| OUTSIDE INCLUDED ANGLE IN DEG | 27.0 |
| THREAD PROVISION | UNTHREADED |
