NSN 2815-00-907-8954
Part Details | ENGINE POPPET VALVE TAPPET
2815-00-907-8954 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.
Alternate Parts: 3004907, BM97366, BM94151, 10399457, 2815-00-907-8954, 00-907-8954, 2815009078954, 009078954
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1960 | 00-907-8954 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |
REFERENCE DRAWINGS & PICTURES

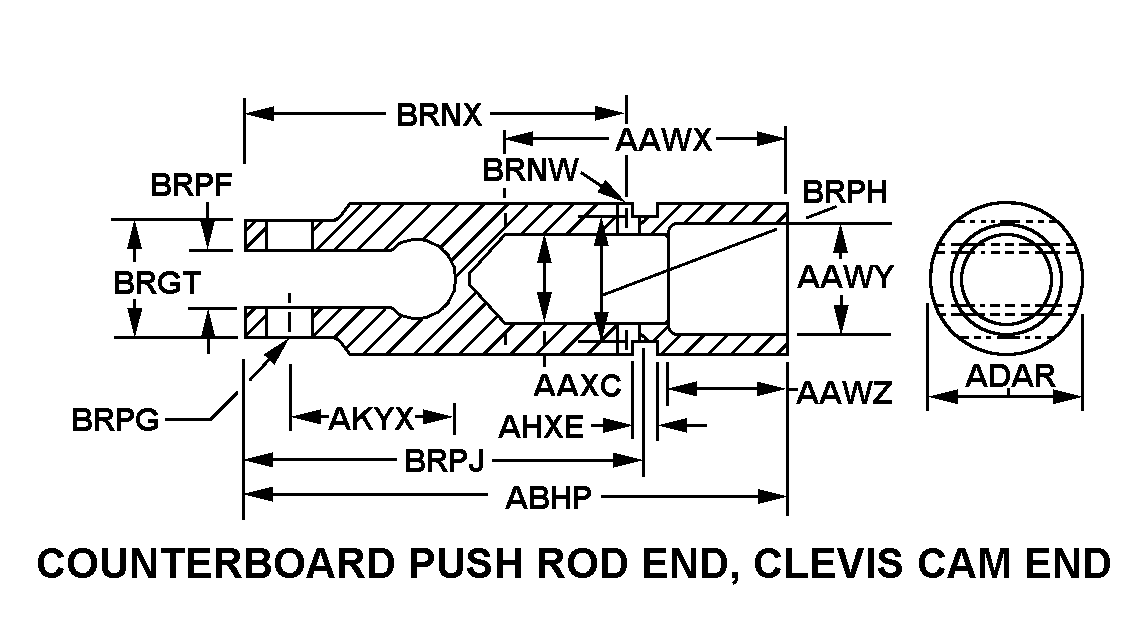

COUNTERBOARD PUSH ROD END, CLEVIS CAM END
Cross Reference | NSN 2815-00-907-8954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3004907 | 15434 | CUMMINS INC. |
| BM97366 | 15434 | CUMMINS INC. |
| BM94151 | 15434 | CUMMINS INC. |
| 10399457 | A486G | NIMIKKEISTOKESKUS NCB FINLAND |
Technical Data | NSN 2815-00-907-8954
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| CASEHARDENING INDICATOR | CASEHARDENED |
| CASEHARDENED LOCATION | OVERALL |
| STYLE DESIGNATOR | COUNTERBOARD PUSH ROD END, CLEVIS CAM END |
| CONCENTRIC HOLE DEPTH | 2.640 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 1.220 INCHES NOMINAL |
| COUNTERBORE DEPTH | 1.462 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 1.162 INCHES NOMINAL |
| OVERALL LENGTH | 4.562 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.400 INCHES NOMINAL |
| BODY GROOVE WIDTH | 0.250 INCHES NOMINAL |
| FORK DEPTH | 0.625 INCHES NOMINAL |
| FORK HEIGHT | 1.175 INCHES NOMINAL |
| BODY HOLE DIAMETER | 0.060 INCHES NOMINAL |
| DISTANCE FROM BODY HOLE CENTER TO CAM END | 1.500 INCHES NOMINAL |
| FORK SLOT WIDTH | 0.812 INCHES NOMINAL |
| FORK HOLE DIAMETER | 0.640 INCHES NOMINAL |
| DISTANCE FROM BODY GROOVE CENTER TO CAM END | 1.625 INCHES NOMINAL |
| ADJUSTABILITY | NONADJUSTABLE |
| SIZE DESIGNATION | STANDARD |
| SPECIAL FEATURES | WITH ROLLER |
