NSN 2815-01-013-5670
Part Details | ENGINE POPPET VALVE ROTOR
2815-01-013-5670 A spring loaded metallic device which is specifically designed to rotate the poppet valves of an internal combustion engine to prevent uneven wear and/or distortion of the valve seating surface. See also SEAT, HELICAL COMPRESSION SPRING.
Alternate Parts: R 49568, R81086, 2815-01-013-5670, 01-013-5670, 2815010135670, 010135670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | DEC 07, 1975 | 01-013-5670 | 22200 ( ROTOR, ENGINE POPPET VALVE ) |
REFERENCE DRAWINGS & PICTURES

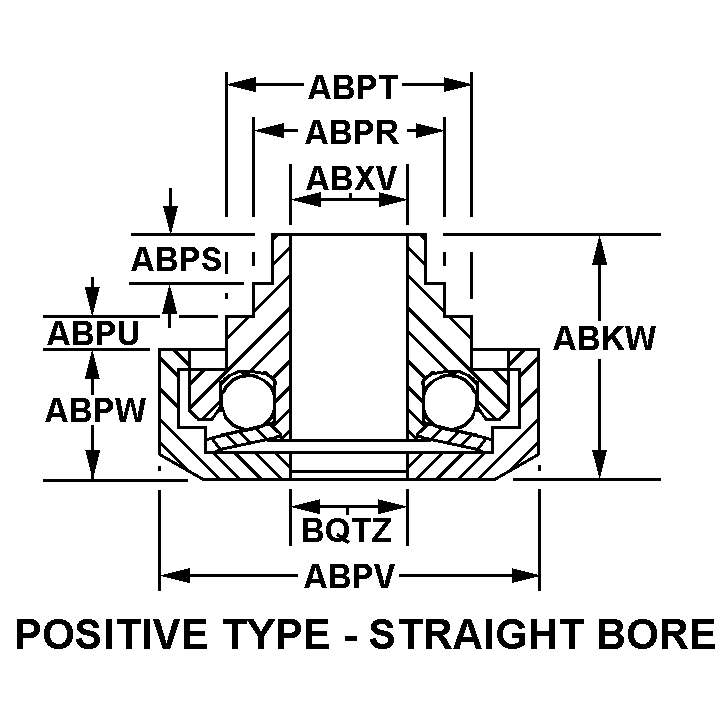

POSITIVE TYPE-STRAIGHT BORE
Cross Reference | NSN 2815-01-013-5670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R 49568 | 75160 | DEERE & CO |
| R81086 | 75755 | DEERE & COMPANYDBA JOHN DEERE |
Technical Data | NSN 2815-01-013-5670
| Characteristic | Specifications |
|---|---|
| ROTATION DIRECTION | CLOCKWISE |
| STYLE DESIGNATOR | POSITIVE TYPE-STRAIGHT BORE |
