NSN 2815-01-019-8855
Part Details | ENGINE POPPET VALVE TAPPET
2815-01-019-8855 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.
Alternate Parts: 3024483, BM94017, BM94014, 2815-01-019-8855, 01-019-8855, 2815010198855, 010198855
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | APR 20, 1976 | 01-019-8855 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |

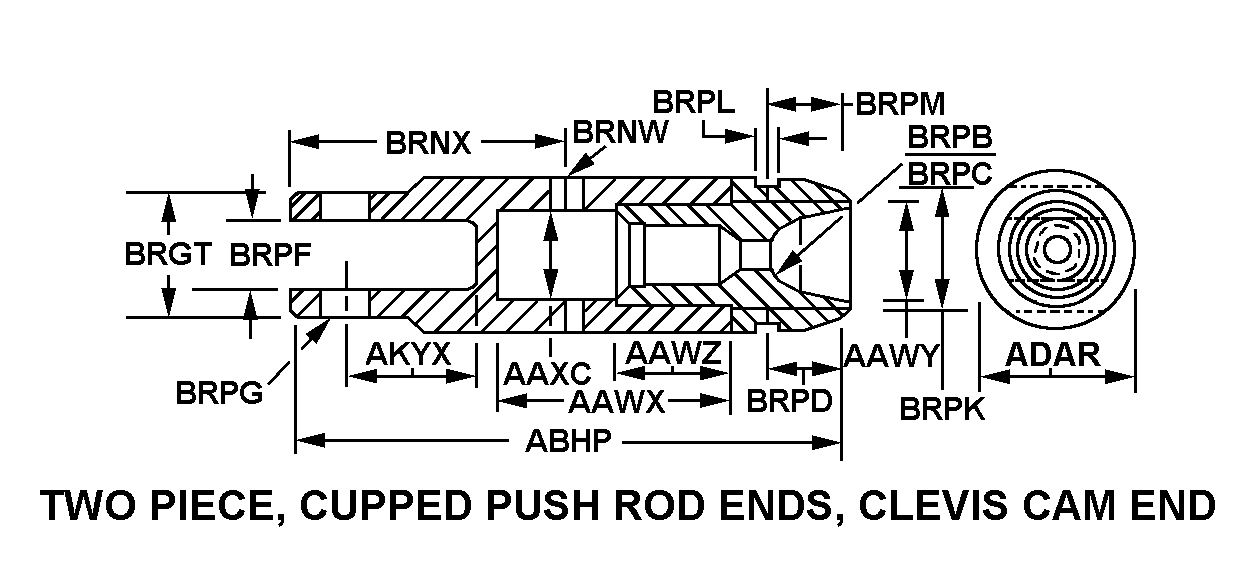

REFERENCE DRAWINGS & PICTURES
TWO PIECE, CUPPED PUSH ROD ENDS, CLEVIS CAM END
Cross Reference | NSN 2815-01-019-8855
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3024483 | 15434 | CUMMINS INC. |
| BM94017 | 15434 | CUMMINS INC. |
| BM94014 | 15434 | CUMMINS INC. |
Technical Data | NSN 2815-01-019-8855
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TWO PIECE, CUPPED PUSH ROD ENDS, CLEVIS CAM END |
