Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
2910-00-228-7757 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: 7479, 074799, 2910-00-228-7757, 00-228-7757, 2910002287757, 002287757
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | FEB 07, 1969 | 00-228-7757 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |
REFERENCE DRAWINGS & PICTURES

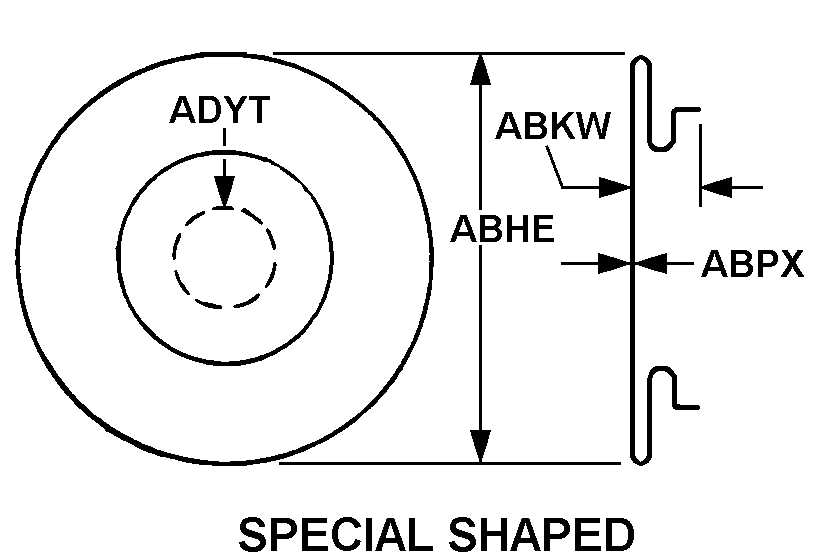

SPECIAL SHAPED
Cross Reference | NSN 2910-00-228-7757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7479 | 80850 | INTERLINE BRANDS, INC.DBA J. A. SEXAUER |
| 074799 | 80850 | INTERLINE BRANDS, INC.DBA J. A. SEXAUER |
Technical Data | NSN 2910-00-228-7757
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.094 INCHES NOMINAL |
| CENTER HOLE DIAMETER | 0.375 INCHES NOMINAL |
