NSN 2910-00-308-1005
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
2910-00-308-1005 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: 94499, 94499, 2910-00-308-1005, 00-308-1005, 2910003081005, 003081005
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-308-1005 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

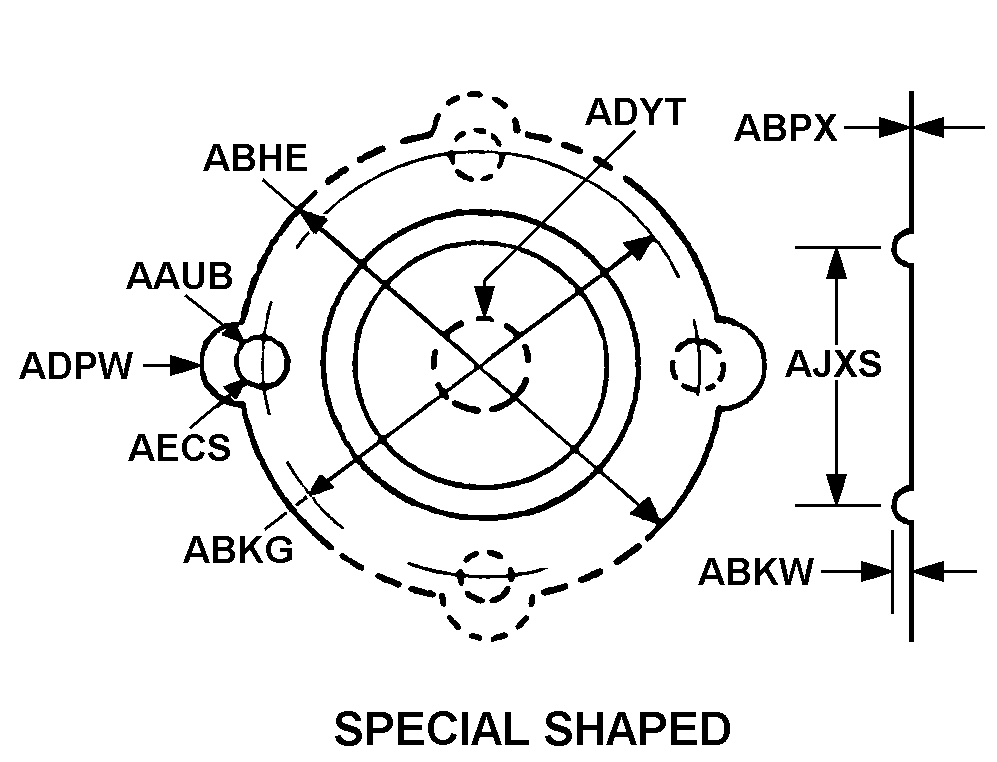

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 2910-00-308-1005
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 94499 | 72599 | ALLIEDSIGNAL INCDBA ALLIED-SIGNAL AEROSPACE CO |
| 94499 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 2910-00-308-1005
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SILICONE |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| HOLE DIAMETER | 0.140 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.740 INCHES MINIMUM AND 1.800 INCHES MAXIMUM |
| BOLT CIRCLE DIAMETER | 1.420 INCHES NOMINAL |
| OVERALL HEIGHT | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.006 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| OUTSIDE CORNER RADIUS | 0.001 INCHES NOMINAL |
| BEAD DIAMETER | 0.910 INCHES NOMINAL |
| BOLT HOLE QUANTITY | 4 |
| MEDIA FOR WHICH DESIGNED | AIR |
| PRESSURE RATING | 21.0 POUNDS PER SQUARE INCH NOMINAL |
