NSN 2915-00-307-5614
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
2915-00-307-5614 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: 394956, 394956, 394956, 2915-00-307-5614, 00-307-5614, 2915003075614, 003075614
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-307-5614 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

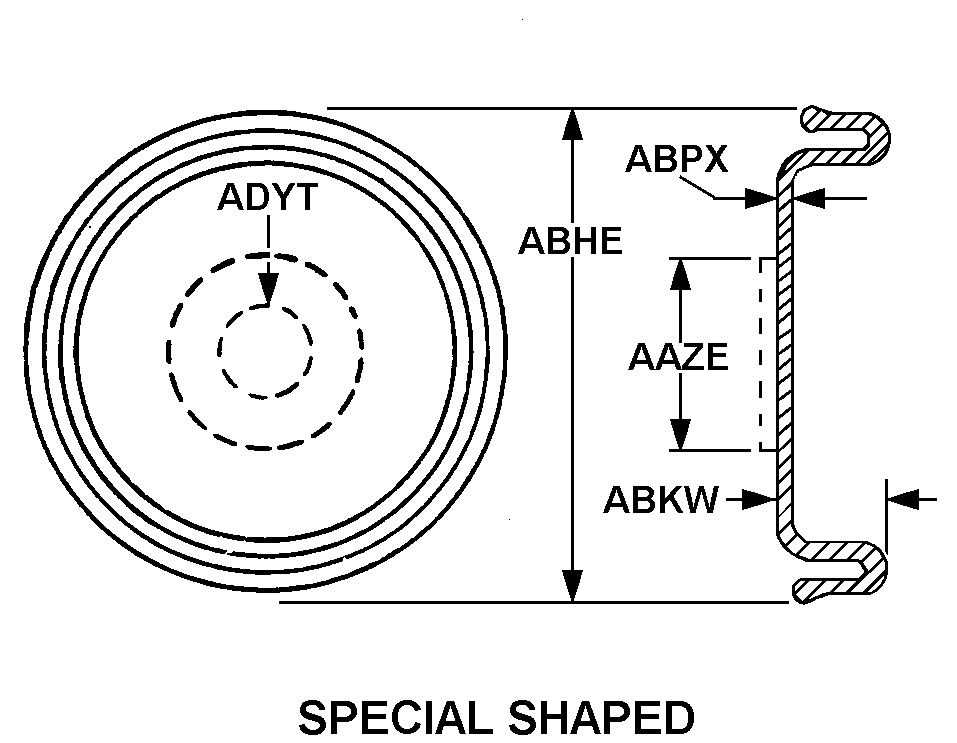

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 2915-00-307-5614
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 394956 | 06848 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 394956 | 65702 | PRECISION AIRMOTIVE LLCDBA PRECISION AIRMOTIVE |
| 394956 | 3VPW3 | PRECISION ENGINES LLC |
Technical Data | NSN 2915-00-307-5614
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC |
| STYLE DESIGNATOR | SPECIAL SHAPED |
| SHANK DIAMETER | 0.492 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.122 INCHES MINIMUM AND 1.128 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.376 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.015 INCHES MINIMUM AND 0.021 INCHES MAXIMUM |
| CENTER HOLE DIAMETER | 0.324 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| MEDIA FOR WHICH DESIGNED | GASOLINE |
