NSN 2920-00-248-8815
Part Details | SPARK PLUG
2920-00-248-8815 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.
Alternate Parts: DL8, DL8C, DL8, DL8C, 50922, 50331E, WS506, 16L, 16L, 14L, 14L, 2920-00-248-8815, 00-248-8815, 2920002488815, 002488815
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-248-8815 | 00294 ( SPARK PLUG ) |
REFERENCE DRAWINGS & PICTURES
UNSHIELDED, THREADED POST, GASKET SEAT

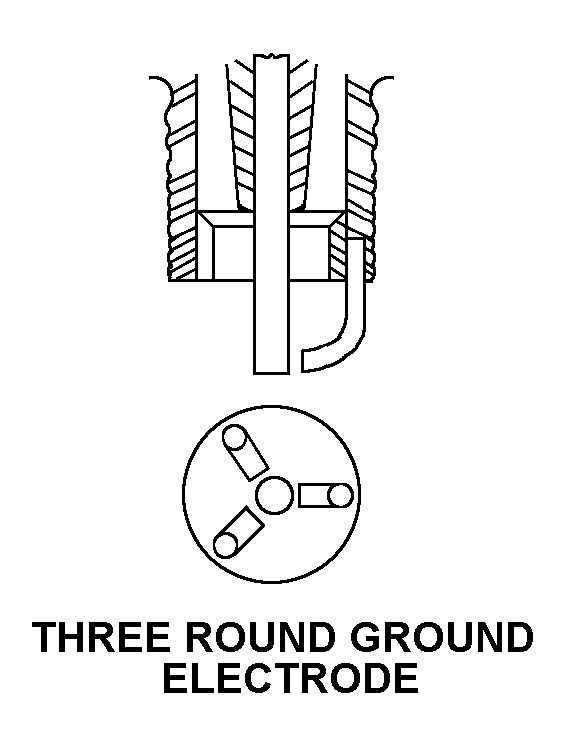

THREE ROUND GROUND ELECTRODE
Cross Reference | NSN 2920-00-248-8815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DL8 | 0AFL4 | CHAMPION AEROSPACE LLC |
| DL8C | 0AFL4 | CHAMPION AEROSPACE LLC |
| DL8 | 86850 | CHAMPION AVIATION INC |
| DL8C | 86850 | CHAMPION AVIATION INC |
| 50922 | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| 50331E | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| WS506 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 16L | 70040 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 16L | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 14L | 70040 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 14L | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 2920-00-248-8815
| Characteristic | Specifications |
|---|---|
| BODY STYLE | UNSHIELDED, THREADED POST, GASKET SEAT |
| REACH LENGTH | 0.625 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |
| SEAT MAJOR DIAMETER | 1.000 INCHES MAXIMUM |
| HEIGHT ABOVE MOUNTING SURFACE | 2.320 INCHES NOMINAL |
| ELECTRODE STYLE | THREE ROUND GROUND ELECTRODE |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 18-1.5MM BASE |
| MEAN EFFECTIVE PRESSURE RATING | 95.0 POUNDS PER SQUARE INCH NOMINAL |
| USAGE DESIGN | ENGINE OTHER THAN AIRCRAFT |
| SPECIAL FEATURES | INDUSTRIAL-COMMERCIAL SERIES |
| TEST DATA DOCUMENT | 81348-WS506 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.). |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND B CLASS |
