NSN 2920-00-294-3932
Part Details | ENGINE ACCESSORY GENERATOR
2920-00-294-3932 A generator primarily designed to be mounted on an internal combustion engine, and to be driven by the engine to keep the battery in a charged condition. May also supply current for the engine ignition system and/or electrical equipment which is connected to the battery circuit. Includes alternating current generators designed for use with a rectifier. Excludes the major generator of "GENERATING SETS". For generators specifically designed for aircraft use and not mounted on the engine, see GENERATOR, DIRECT CURRENT.
Alternate Parts: 1105955, 1105955, 1105955, 2920-00-294-3932, 00-294-3932, 2920002943932, 002943932
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-294-3932 | 17311 ( GENERATOR, ENGINE ACCESSORY ) |
REFERENCE DRAWINGS & PICTURES
ROUND FLANGE WITH HOLES EQUALLY SPACED

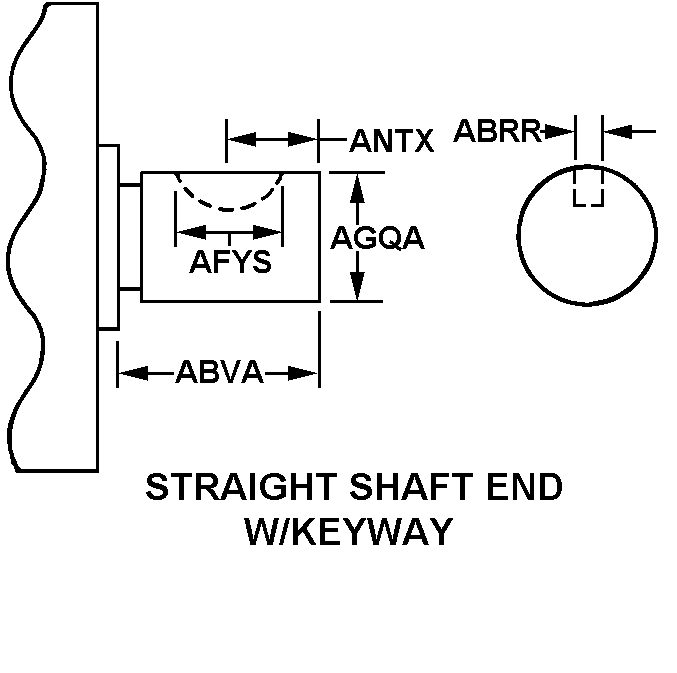

STRAIGHT SHAFT END W/KEYWAY
Cross Reference | NSN 2920-00-294-3932
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1105955 | 24617 | GENERAL MOTORS CORP |
| 1105955 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 1105955 | 1LW55 | REMY, INC. |
Technical Data | NSN 2920-00-294-3932
| Characteristic | Specifications |
|---|---|
| VOLTAGE IN VOLTS | 24.0 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS | 10.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM | 2050 |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT | 2000 |
| MINIMUM CURRENT CUT-IN SPEED IN RPM | 1850 |
| SHAFT ROTATION DIRECTION | CLOCKWISE |
| MOUNTING STYLE | 5 ROUND FLANGE WITH HOLES EQUALLY SPACED |
| DISTANCE BETWEEN SHAFT CENTER AND BOTTOM MOUNTING HOLE CENTER | 3.875 INCHES NOMINAL |
| DISTANCE BETWEEN SHAFT CENTER AND TOP MOUNTING HOLE CENTER | 3.625 INCHES NOMINAL |
| DISTANCE BETWEEN INSIDE SURFACES OF HINGE BRACKET | 7.250 INCHES NOMINAL |
| DISTANCE BETWEEN OUTSIDE SURFACES OF HINGE BRACKET | 8.250 INCHES NOMINAL |
| BOTTOM MOUNTING HOLE DIAMETER | 0.312 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 3 |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG | 193.0 |
| ANGULAR DEVIATION OF SECOND HOLE FROM FIRST HOLE IN DEG | 169.0 |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE THREAD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING HOLE THREAD QUANTITY PER INCH | 20 |
| MOUNTING HOLE THREAD CLASS | 1B |
| MOUNTING HOLE THREAD DIRECTION | RIGHT-HAND |
| SHAFT DRIVE END STYLE | STRAIGHT SHAFT END W/KEYWAY |
| KEYWAY WIDTH | 0.125 INCHES NOMINAL |
| UNTHREADED PORTION LENGTH | 1.125 INCHES NOMINAL |
| KEYWAY LENGTH | 0.500 INCHES NOMINAL |
| LARGEST DIAMETER | 0.625 INCHES NOMINAL |
| DISTANCE FROM END TO KEYWAY CENTER | 0.333 INCHES NOMINAL |
| SUBMERSIBILITY | NONSUBMERSIBLE |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FUNGUS RESISTANT |
| FURNISHED ITEMS | COOLING FAN AND DRIVE PULLEY |
| SPECIAL FEATURES | EXTERNAL BLAST COOLING |
| UNPACKAGED UNIT LENGTH | 8.750 INCHES NOMINAL |
| UNPACKAGED UNIT WIDTH | 5.250 INCHES NOMINAL |
| UNPACKAGED UNIT HEIGHT | 5.250 INCHES NOMINAL |
| TERMINAL TYPE | THREADED STUD |
| TERMINAL QUANTITY | 2 |
