NSN 2925-00-711-9411
Part Details | SPARK PLUG
2925-00-711-9411 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.
Alternate Parts: SR87, SR87, SR87, 2925-00-711-9411, 00-711-9411, 2925007119411, 007119411
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-711-9411 | 00294 ( SPARK PLUG ) |
REFERENCE DRAWINGS & PICTURES

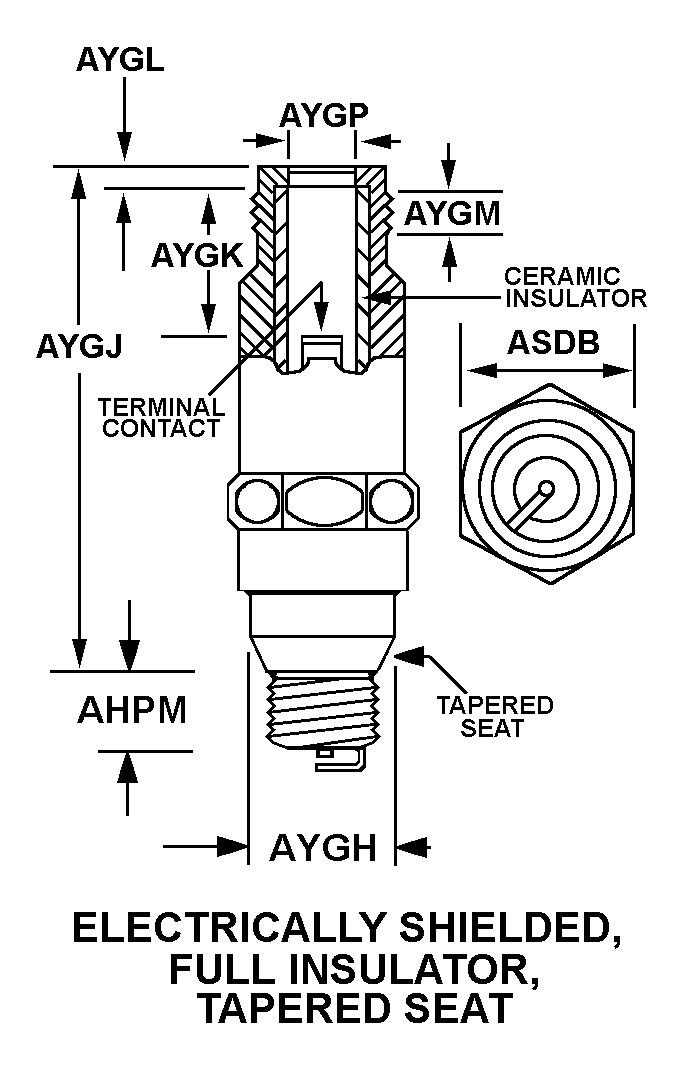

ELECTRICALLY SHIELDED, FULL INSULATOR, TAPERED SEAT
SINGLE FLAT SHELL GROUND ELECTRODE (SEE ALSO STYLE 4)
Cross Reference | NSN 2925-00-711-9411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR87 | 24617 | GENERAL MOTORS CORP |
| SR87 | 70040 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| SR87 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 2925-00-711-9411
| Characteristic | Specifications |
|---|---|
| BODY STYLE | ELECTRICALLY SHIELDED, FULL INSULATOR, TAPERED SEAT |
| ELECTRODE STYLE | 3 SINGLE FLAT SHELL GROUND ELECTRODE (SEE ALSO STYLE 4) |
| DC RESISTANCE RATING IN OHMS | 175.0 NOMINAL |
| USAGE DESIGN | AIRCRAFT ENGINE |
