NSN 2925-01-495-6567
Part Details | IGNITION LOCK SWITCH
2925-01-495-6567 A switch which is externally actuated by a device such as a key/cylinder lock to actuate a remote lever or rod rack to activate a remote switch. The actuation device may or may not be an integal part of the switch. The primary purpose of the switch is to open and close the ignition circuit of an internal combustion engine and actuate various accessories. Excludes SWITCH, ENGINE STARTER, ELECTRICAL and SWITCH, LOCK.
Alternate Parts: 50L6001203N, 50L60-01-2-03N, 2925-01-495-6567, 01-495-6567, 2925014956567, 014956567
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 21, 2002 | 01-495-6567 | 00402 ( SWITCH, LOCK, IGNITION ) |
REFERENCE DRAWINGS & PICTURES

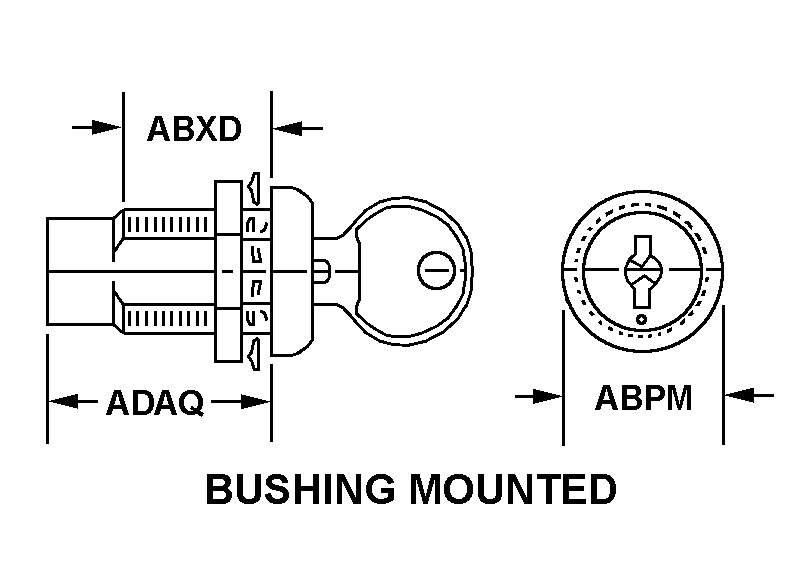

BUSHING MOUNTED
Cross Reference | NSN 2925-01-495-6567
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50L60-01-2-03N | 81073 | GRAYHILL, INC |
Technical Data | NSN 2925-01-495-6567
| Characteristic | Specifications |
|---|---|
| BODY STYLE | BUSHING MOUNTED |
| BODY DIAMETER | 0.875 INCHES NOMINAL |
| BUSHING LENGTH | 0.875 INCHES NOMINAL |
| BODY LENGTH | 2.011 INCHES NOMINAL |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | LOCK, BARREL AND PLUG ARE ZINC, BRIGHT NICKEL PLATED; KEY AND TUMBLERS ARE BRASS; LOCKWASHER IS STEEL, CADMIUM PLATED; MOUNTING NUT IS STEEL, NICKEL PLATED |
| END ITEM IDENTIFICATION | PILOT SIMULATOR HAWKEYE |
