NSN 2925-01-603-6379
Part Details | SPARK PLUG
2925-01-603-6379 An item containing two or more electrodes across which an electric spark is discharged to ignite a fuel and air mixture, primarily in internal combustion engines. Excludes GLOW PLUG; and ELECTRODE.
Alternate Parts: 897259, 897-259, 2925-01-603-6379, 01-603-6379, 2925016036379, 016036379
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | MAR 08, 2012 | 01-603-6379 | 00294 ( SPARK PLUG ) |
REFERENCE DRAWINGS & PICTURES

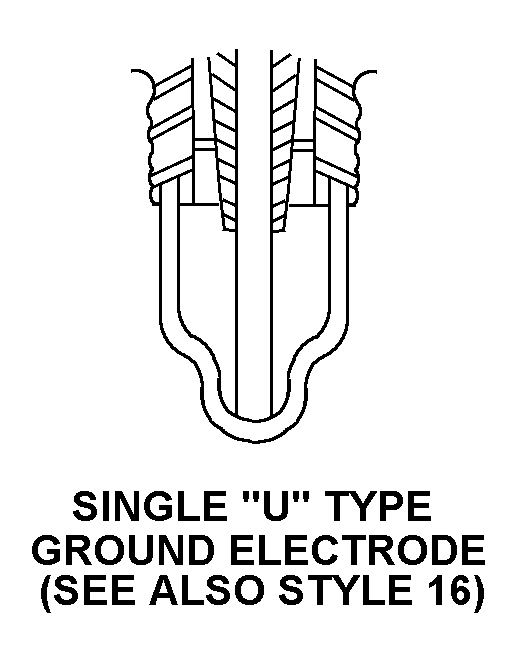

SINGLE "U" TYPE GROUND ELECTRODE (SEE ALSO STYLE 16)
Cross Reference | NSN 2925-01-603-6379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 897-259 | 0YJB5 | GENERAL ATOMICS AERONAUTICALSYSTEMS, INC. |
Technical Data | NSN 2925-01-603-6379
| Characteristic | Specifications |
|---|---|
| REACH LENGTH | 19.0 MILLIMETERS NOMINAL |
| WIDTH ACROSS FLATS | 18.0 MILLIMETERS NOMINAL |
| ELECTRODE STYLE | SINGLE "U" TYPE GROUND ELECTRODE (SEE ALSO STYLE 16) |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR AND LOCATION | 12-1.25MM BASE |
| USAGE DESIGN | AIRCRAFT ENGINE |
| FEATURES PROVIDED | PLUG SEAT GASKET |
