NSN 2940-00-705-5956
Part Details | FLUID FILTER
2940-00-705-5956 A filter having inlet and outlet connections and designed to be connected in a pipe, tube or hose line. For spin-on, base-mounted filtering devices with integral outer casings, see FILTER ELEMENT, FLUID. Excludes AIR CONDITIONER.
Alternate Parts: 5194287, 5194287, 2940-00-705-5956, 00-705-5956, 2940007055956, 007055956
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 29 | JAN 01, 1963 | 00-705-5956 | 32622 ( FILTER, FLUID ) |
REFERENCE DRAWINGS & PICTURES

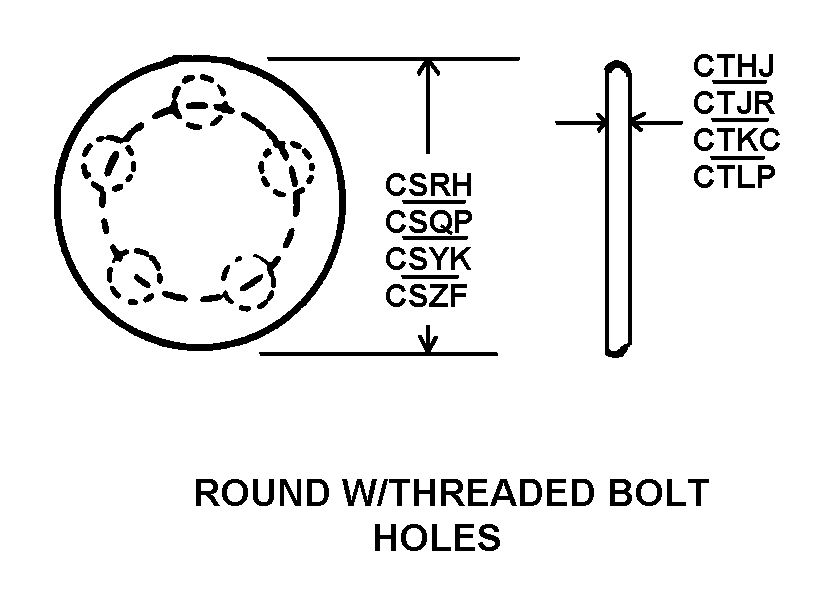

ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES
ROUND W/THREADED BOLT HOLES
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 2940-00-705-5956
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5194287 | 24617 | GENERAL MOTORS CORP |
| 5194287 | 72582 | MTU AMERICA INC. |
Technical Data | NSN 2940-00-705-5956
| Characteristic | Specifications |
|---|---|
| BODY LENGTH | 12.000 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 5.000 INCHES NOMINAL |
| DESIGN TYPE | REUSABLE |
| FILTERING ELEMENT QUANTITY | 1 |
| FIRST INTAKE FLANGE SHAPE STYLE | ROUND W/THREADED BOLT HOLES |
| FIRST INTAKE FLANGE FACE STYLE | PLAIN |
| FEATURES PROVIDED | BY-PASS VALVE |
