NSN 3010-00-475-1852
Part Details | FLEXIBLE COUPLING INSERT
3010-00-475-1852 An item specifically designed to be inserted between the driving and driven members of a flexible coupling to allow for slight misalignment of the shafts.
Alternate Parts: 10064641, 10064641, 10064641, 10064641, 3010-00-475-1852, 00-475-1852, 3010004751852, 004751852
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-475-1852 | 08010 ( INSERT, FLEXIBLE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

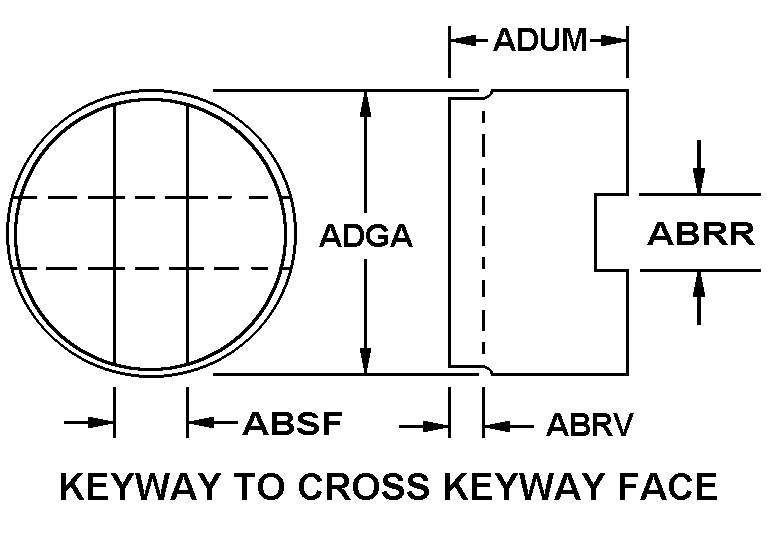

KEYWAY TO CROSS KEYWAY FACE
Cross Reference | NSN 3010-00-475-1852
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10064641 | 54X10 | RAYTHEON COMPANYDBA RAYTHEON |
| 10064641 | 49956 | RAYTHEON COMPANYDBA RAYTHEON |
| 10064641 | 3B150 | RAYTHEON COMPANYDBA RAYTHEON |
| 10064641 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
Technical Data | NSN 3010-00-475-1852
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEYWAY TO CROSS KEYWAY FACE |
| KEYWAY WIDTH | 0.220 INCHES NOMINAL |
| KEYWAY DEPTH | 0.215 INCHES NOMINAL |
| KEY WIDTH | 0.220 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.437 INCHES NOMINAL |
| OVERALL THICKNESS | 0.562 INCHES NOMINAL |
| SPECIAL FEATURES | LAMINATED CONSTRUCTION FEATURE-NOT INCL.;DIFFERENTIATING KEYWAY DEPTH 0.220 IN.;MATL-PLASTIC POLYAMIDE MIL-P-17091,TY 1 |
