NSN 3010-01-107-8985
Part Details | RIGID SHAFT COUPLING
3010-01-107-8985 A device for connecting the ends of two shafts to produce in effect, one piece of rigid shafting so that the rotary motion of one shaft is transmitted to the other shaft. Couplings of the sleeve type must have an over-all length exceeding the outside diameter, or must have an internal spline.
Alternate Parts: 176C1535, 3010-01-107-8985, 01-107-8985, 3010011078985, 011078985
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | FEB 14, 1981 | 01-107-8985 | 13742 ( COUPLING, SHAFT, RIGID ) |
REFERENCE DRAWINGS & PICTURES

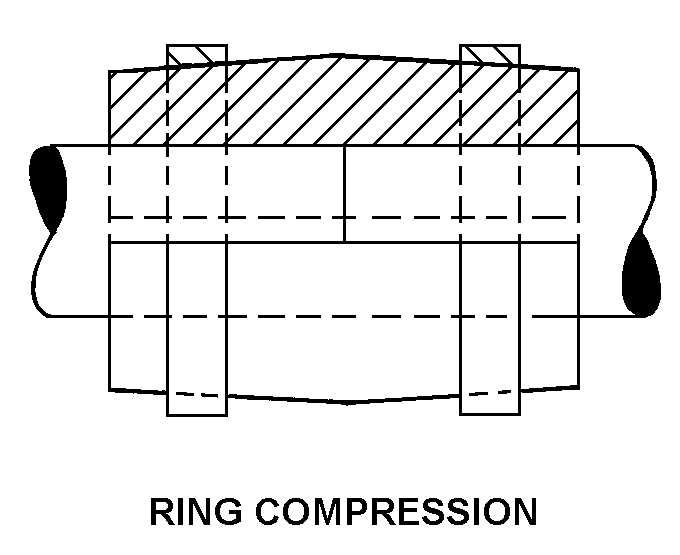

RING COMPRESSION
Cross Reference | NSN 3010-01-107-8985
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 176C1535 | 05606 | GENERAL DYNAMICS-OTS, INC.DBA GD-OTS (WILLISTON) |
Technical Data | NSN 3010-01-107-8985
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL |
| STYLE DESIGNATOR | RING COMPRESSION |
| OVERALL DIAMETER | 1.180 INCHES MINIMUM AND 1.220 INCHES MAXIMUM |
| OVERALL LENGTH | 3.150 INCHES NOMINAL |
| FEATURES PROVIDED | BORE COUNTERBORE |
| UNTHREADED HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.1940 INCHES MINIMUM AND 0.2040 INCHES MAXIMUM |
| SPECIAL FEATURES | COUNTERBORE DIAMETER: 0.620 IN. NOMINAL; COUNTERBORE DEPTH: 0.040 IN. MINIMUM AND 0.080 IN. MAXIMUM; PITCH DIAMETER: 0.600 IN. NOMINAL; END DIAMETER: 0.617 IN. MINIMUM AND 0.623 IN. MAXIMUM |
