NSN 3010-01-178-2889
Part Details | LINEAR HYDRAULIC-PNEUMATIC ACTUATOR
3010-01-178-2889 A self-contained power transmitting device designed to convert hydraulic or pneumatic force into controlled mechanical force in the form of linear (straight line) mechanical movement. The linear motion is limited in regards to travel distance. Excludes hydraulic and pneumatic cylinders and screwjacks.
Alternate Parts: 766961604B01PC1, 76696-1604B01PC1, 766961604B01, 76696-16-04B01, 48567530001, 4856753-0001, 3010-01-178-2889, 01-178-2889, 3010011782889, 011782889
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | MAY 03, 1984 | 01-178-2889 | 37304 ( ACTUATOR, HYDRAULIC-PNEUMATIC, LINEAR ) |
REFERENCE DRAWINGS & PICTURES

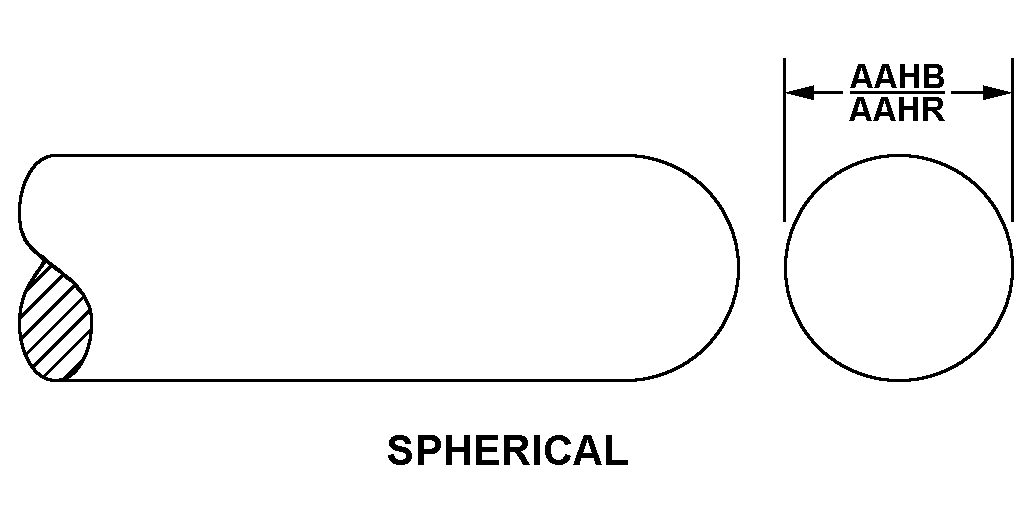

SPHERICAL
SPHERICAL
Cross Reference | NSN 3010-01-178-2889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 76696-1604B01PC1 | 96169 | ELECTRIC BOAT CORPORATION |
| 76696-16-04B01 | 96169 | ELECTRIC BOAT CORPORATION |
| 4856753-0001 | 96169 | ELECTRIC BOAT CORPORATION |
Technical Data | NSN 3010-01-178-2889
| Characteristic | Specifications |
|---|---|
| DESIGN CHARACTERISTICS | SINGLE ACTING SINGLE CYLINDER |
| EXTENDED LENGTH | 17.620 INCHES NOMINAL |
| COMPRESSED LENGTH | 12.000 INCHES NOMINAL |
| BODY MATERIAL | ANY ACCEPTABLE |
| BORE DIAMETER | 1.372 INCHES NOMINAL |
| FIRST PISTON ROD END STYLE | SPHERICAL |
| FIRST END OUTSIDE DIAMETER | 1.372 INCHES |
| PISTON ROD END SIMILARITY | IDENTICAL |
