NSN 3010-01-247-8353
Part Details | SHAFT COUPLING HALF
3010-01-247-8353 A mechanical item used to connect a shaft and the mating member of a flexible or rigid coupling.
Alternate Parts: S6110264062, S6110-26406-2, 3010-01-247-8353, 01-247-8353, 3010012478353, 012478353
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 13, 1987 | 01-247-8353 | 08009 ( COUPLING HALF, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

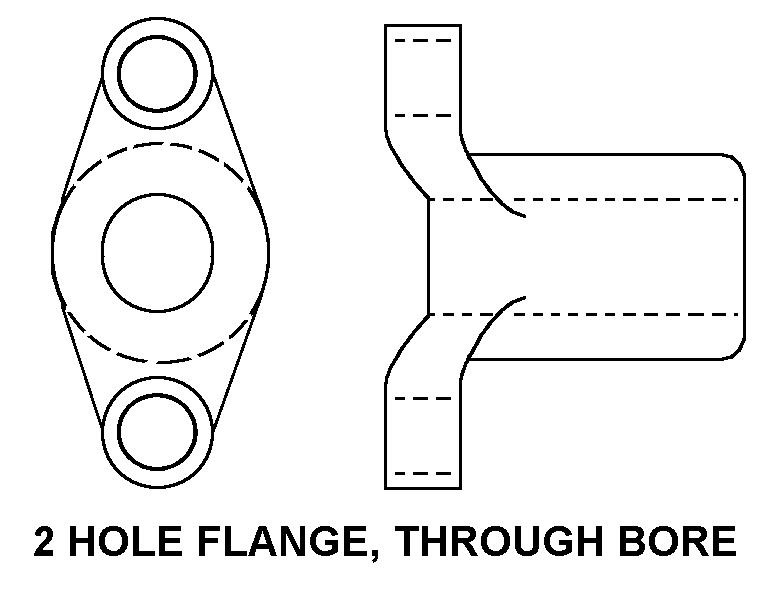

2 HOLE FLANGE, THROUGH BORE
Cross Reference | NSN 3010-01-247-8353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S6110-26406-2 | 78286 | SIKORSKY AIRCRAFT CORPORATIONDBA SIKORSKY |
Technical Data | NSN 3010-01-247-8353
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL AND NICKEL ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE |
| BODY STYLE | 2 HOLE FLANGE, THROUGH BORE |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| BORE SHAPE | STRAIGHT |
| BORE DIAMETER | 0.5000 INCHES NOMINAL |
| BORE LENGTH | 1.2190 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE TREATMENT:CADMIUM PLATED; POSITIONING FACILITY BOLT CIRCLE DIA.:2.906" NOM.; POSITIONING FACILITY QTY:2; HOLE THREAD SIZE DESIGNATOR:0.375-20; THREADED HOLE LOCATION:60 DEG. FROM LUG; THREADED HOLE QTY:2; SECURING METHOD:THREADED HOLE; BORE COUNTERBORE FEATURE:NOT INCLUDED; KEYING FACILITY:NOT INCLUDED; O/A OUTSIDE DIMENSION:3.844"; HUB OD:1.500" NOM.; THREAD PROVISION:UNTHREADED; FLANGE THICKNESS:0.438" NOM. |
