NSN 3020-00-132-5281
Part Details | SILENT CHAIN
3020-00-132-5281 A flexible mechanical device consisting of inverted tooth links, with or without guide links, and used for power transmission. The links are joined by pins and mate with the sprocket teeth with a sliding action. Excludes flexible mechanical devices specifically designed for use with COUPLING, SHAFT, FLEXIBLE.
Alternate Parts: 82823A, 82823A, 3020-00-132-5281, 00-132-5281, 3020001325281, 001325281
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1963 | 00-132-5281 | 04449 ( CHAIN, SILENT ) |
REFERENCE DRAWINGS & PICTURES

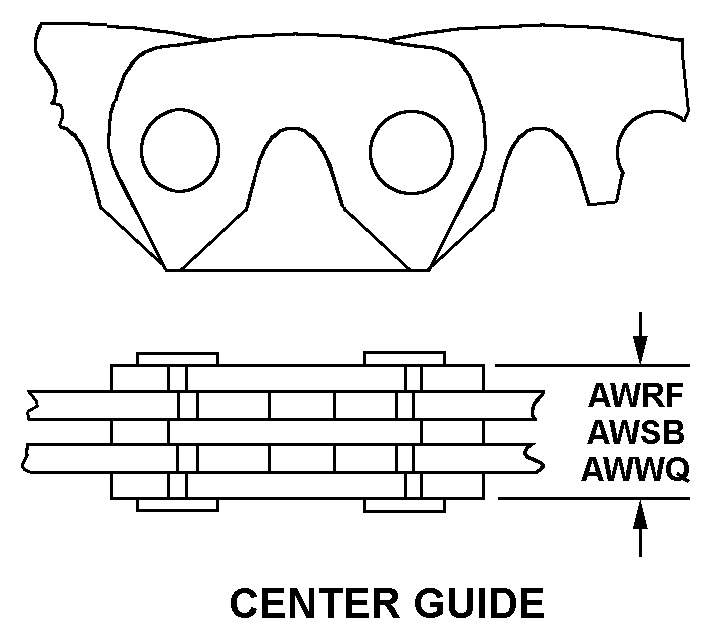

CENTER GUIDE
CENTER GUIDE
CENTER GUIDE
Cross Reference | NSN 3020-00-132-5281
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 82823A | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 82823A | 28265 | HERCULES ENGINE CO INC |
Technical Data | NSN 3020-00-132-5281
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| LINK STYLE | CENTER GUIDE |
| LINK NOMINAL WIDTH | 2.0000 INCHES |
| LINK ROW QUANTITY | 33 |
| EFFECTIVE LENGTH | 3.2188 FEET NOMINAL |
