NSN 3020-00-230-3542
Part Details | ROLLER CHAIN LINK
3020-00-230-3542 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Alternate Parts: 5000550208, 50005-502-08, 3020-00-230-3542, 00-230-3542, 3020002303542, 002303542
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | OCT 12, 1970 | 00-230-3542 | 04488 ( LINK, ROLLER CHAIN ) |

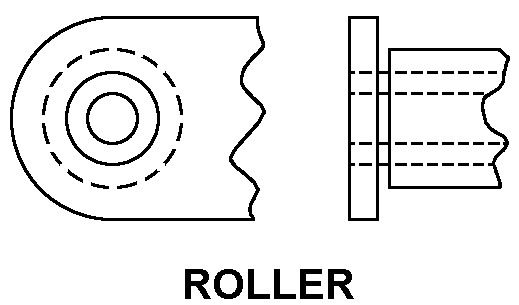

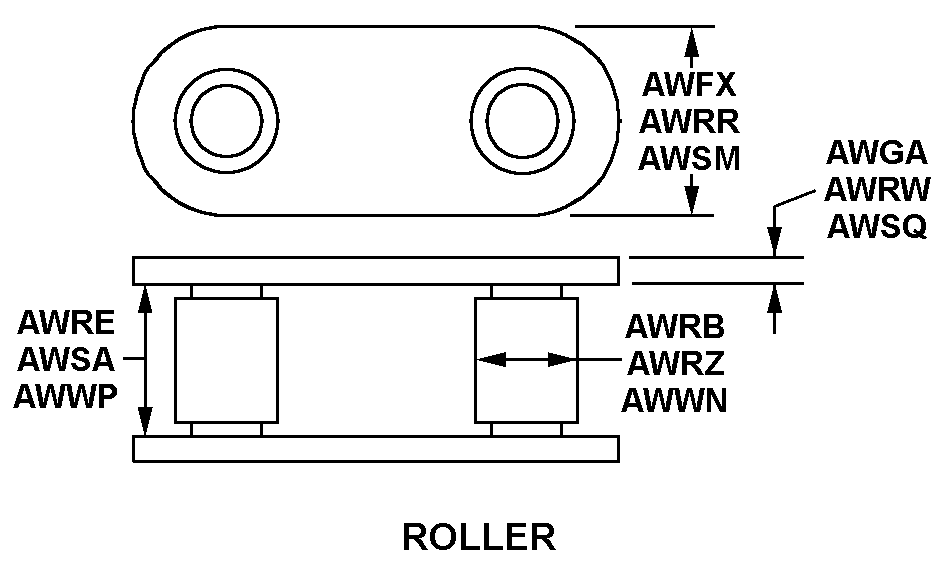

REFERENCE DRAWINGS & PICTURES
ROLLER
ROLLER
Cross Reference | NSN 3020-00-230-3542
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50005-502-08 | 31245 | TEREX USA, LLCDBA CEDARAPIDS |
Technical Data | NSN 3020-00-230-3542
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 2.625 INCHES |
| LINK STYLE | ROLLER |
| LINK PLATE NOMINAL THICKNESS | 0.2500 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.8750 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 1.0625 INCHES |
| LINK PLATE WIDTH | 1.125 INCHES NOMINAL |
| END CONNECTION STYLE | ROLLER |
| BUSHING HOLE DIAMETER | 0.4500 INCHES NOMINAL |
