NSN 3020-00-233-7772

Part Details | CONE PULLEY

3020-00-233-7772 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.

Alternate Parts: F2152161, F2152-161, 3020-00-233-7772, 00-233-7772, 3020002337772, 002337772

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
30MAR 05, 197100-233-777208110 ( PULLEY, CONE )
REFERENCE DRAWINGS & PICTURES

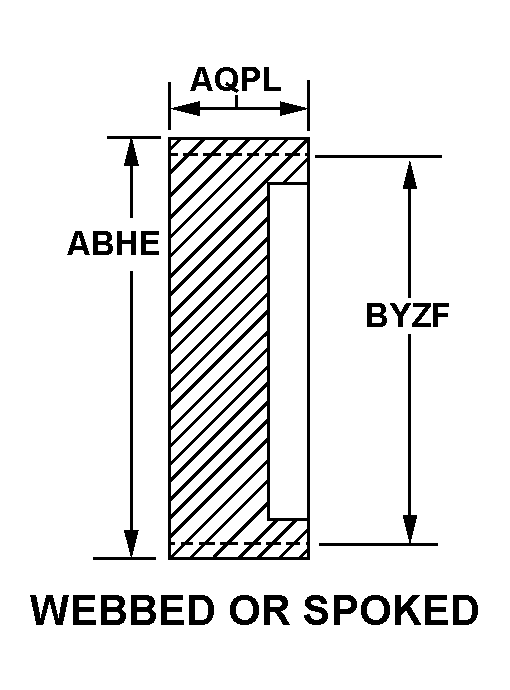

WEBBED OR SPOKED

Cross Reference | NSN 3020-00-233-7772
Part Number Cage Code Manufacturer
F2152-16100624EATON-AEROQUIP LLC.DBA AEROSPACE GROUP
Technical Data | NSN 3020-00-233-7772
Characteristic Specifications
FACE TYPE STEP GROOVE
STEP QUANTITY3
FACE WIDTH0.840 INCHES NOMINAL AND 0.840 INCHES NOMINAL AND 0.880 INCHES NOMINAL
STEP OUTSIDE DIAMETER8.500 INCHES NOMINAL AND 6.974 INCHES NOMINAL AND 4.500 INCHES NOMINAL
GROOVE SHAPE V
GROOVE QUANTITY3
GROOVE DEPTH0.690 INCHES NOMINAL
GROOVE WIDTH0.656 INCHES NOMINAL AND 0.637 INCHES NOMINAL AND 0.656 INCHES NOMINAL
V GROOVE ANGLE IN DEG40.0
STANDARD V-BELT SECTION DESIGNATION FOR WHICH DESIGNEDC
V GROOVE PITCH DIAMETER8.000 INCHES NOMINAL
STYLE DESIGNATOR WEBBED OR SPOKED
DESIGN FORM WEBBED
WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE OFFSET
LIGHTENING HOLE NOT INCLUDED
INTEGRAL COOLING VANE NOT INCLUDED
OVERALL LENGTH2.560 INCHES NOMINAL
MATERIAL AND LOCATION ALUMINUM ALLOY OVERALL
BORE BEARING NOT INCLUDED
BORE TYPE TAPERED
COUNTERBORE FEATURE NOT INCLUDED
TAPER BORE MAJOR DIAMETER2.240 INCHES NOMINAL
TAPER MAJOR DIAMETER LOCATION AA END
KEYING FACILITY NOT INCLUDED
DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATIONBBZ0.750 INCHES NOMINAL
SPLIT HUB FEATURE NOT INCLUDED
SECURING METHODHF ANY ACCEPTABLE
SECURING HOLE QUANTITY3
THREAD SIZE0.375-16
HOLE LOCATIONON PULLEY FACE
BOLT CIRCLE DIAMETER2.124 INCHES NOMINAL
