NSN 3020-00-239-8237
Part Details | ROLLER CHAIN LINK
3020-00-239-8237 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Alternate Parts: N040LINKSINGLE, 400FFSET, 400L, 40-0L, ASA400L, ASA40-0L, 400L, 40-0L, SINGLE660L, SINGLE66-0L, C7466, 400L, 40 OSCL, 40 OS-CL, 400L, 40-0L, RC401RC3CL, RC40-1RC3CL, RC4010L, RC40-1-0L, RC400L, RC40-0L, EM47, RC400FFSET, 08425, 400L, 40-0L, EM47, 108933A, 1089-33A, 400L, 40-0L, RS40, 3020-00-239-8237, 00-239-8237, 3020002398237, 002398237
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1961 | 00-239-8237 | 04488 ( LINK, ROLLER CHAIN ) |

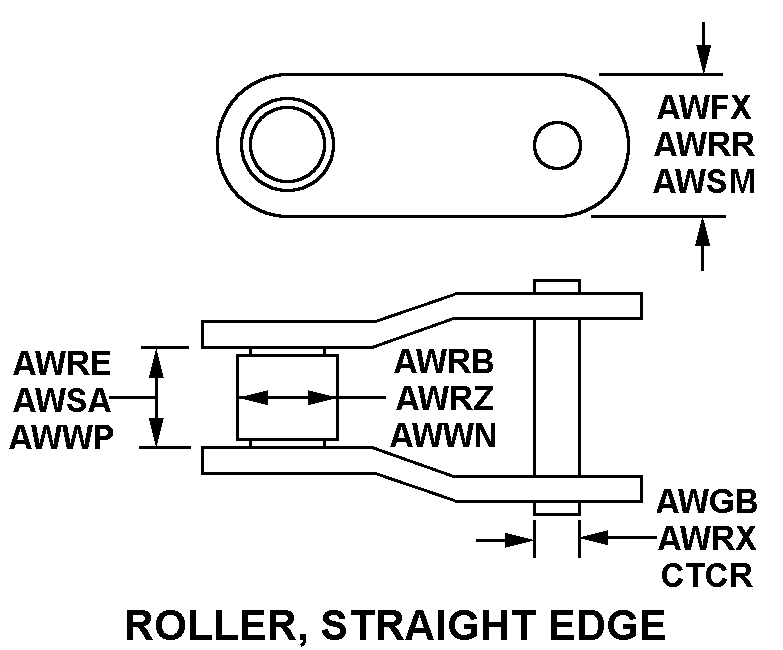

REFERENCE DRAWINGS & PICTURES
ROLLER, STRAIGHT EDGE
Cross Reference | NSN 3020-00-239-8237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N040LINKSINGLE | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| 400FFSET | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| 40-0L | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| ASA40-0L | 84233 | ATLAS CHAIN CO |
| 40-0L | 15405 | CULLMAN WHEEL CO |
| SINGLE66-0L | 72625 | DIAMOND CHAIN CODIV OF AMSTED INDUSTRIES INC |
| C7466 | 72625 | DIAMOND CHAIN CODIV OF AMSTED INDUSTRIES INC |
| 400L | 72625 | DIAMOND CHAIN CODIV OF AMSTED INDUSTRIES INC |
| 40 OS-CL | 71176 | EMERSON ELECTRIC COBROWNING MFG DIV |
| 40-0L | 76474 | EMERSON POWER TRANSMISSIONCORPORATION |
| RC40-1RC3CL | 36384 | FMC CORPLINK-BELT DIV |
| RC40-1-0L | 36384 | FMC CORPLINK-BELT DIV |
| RC40-0L | 36384 | FMC CORPLINK-BELT DIV |
| EM47 | 36384 | FMC CORPLINK-BELT DIV |
| RC400FFSET | 58849 | FMC TECHNOLOGIES INCDIV MATERIAL HANDLING SOLUTIONS |
| 08425 | 31974 | HOFFMAN/NEW YORKER, INC. |
| 40-0L | 55739 | JEFFREY CHAIN L.P. |
| EM47 | 2Y614 | LINK-BELT CONSTRUCTION EQUIPMENTCOMPANY, L.P., LLLP |
| 1089-33A | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFTDIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
| 40-0L | 11406 | REXNORD HOLDINGS INC |
| RS40 | 78985 | UNION CHAINDIV OF UST INC |
Technical Data | NSN 3020-00-239-8237
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 0.500 INCHES |
| LINK STYLE | ROLLER, STRAIGHT EDGE |
| LINK PLATE NOMINAL THICKNESS | 0.0600 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.1562 INCHES |
| LINK ROLLER NOMINAL DIAMETER | 0.3125 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.3125 INCHES |
| LINK PLATE WIDTH | 0.475 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| PIN FASTENING METHOD | COTTER PIN |
| MINIMUM TENSILE STRENGTH | 3700 POUNDS PER SQUARE INCH |
