NSN 3020-00-240-6737
Part Details | ROLLER CHAIN LINK
3020-00-240-6737 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Alternate Parts: ASA350L, ASA35-0L, TYPE350FFSET, 8962277PC30FFSET, 89-6-2277PC30FFSET, 350L, 35-0L, ASA350L, ASA35-0L, SINGLE820L, SINGLE82-0L, RC3510L, RC35-1-0L, RC350L, RC35-0L, 7691, 350L, 35-0L, RC350L, RC35-0L, MS421351RC3CLA, MS421-35-1RC3CLA, 749135, 319353PC6, ASA350L, ASA35-0L, 350L, 35-0L, 11P02, 350L, 35-0L, 3020-00-240-6737, 00-240-6737, 3020002406737, 002406737
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1961 | 00-240-6737 | 04488 ( LINK, ROLLER CHAIN ) |
REFERENCE DRAWINGS & PICTURES

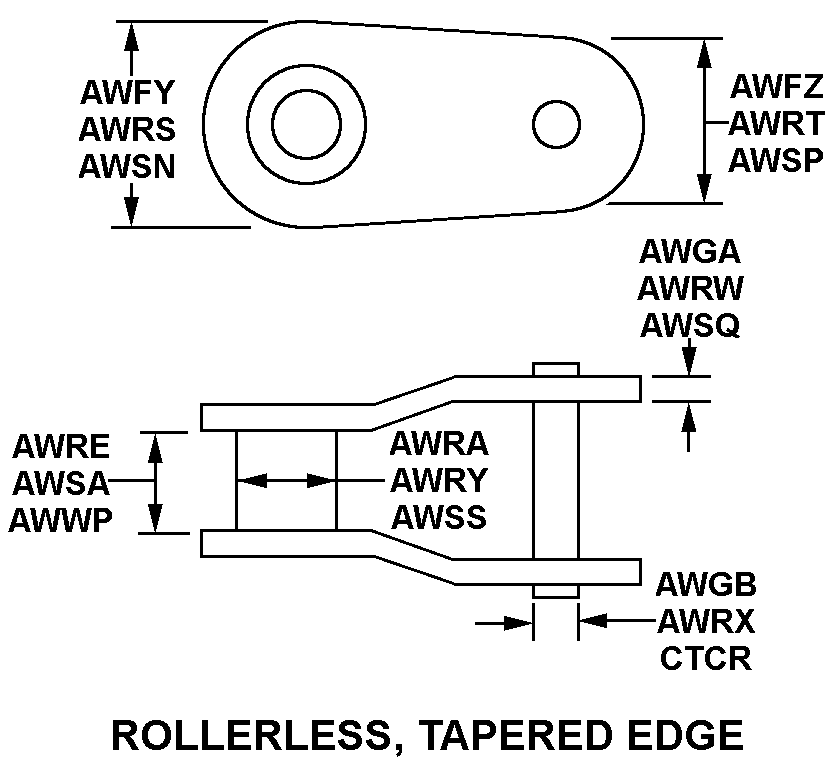

ROLLERLESS, TAPERED EDGE
Cross Reference | NSN 3020-00-240-6737
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASA35-0L | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| TYPE350FFSET | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| 89-6-2277PC30FFSET | 02470 | AMF INC WORLD HEADQUARTERS |
| 35-0L | 16232 | BDP CO DIV OF CARRIER CORP |
| ASA35-0L | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| SINGLE82-0L | 72625 | DIAMOND CHAIN CODIV OF AMSTED INDUSTRIES INC |
| RC35-1-0L | 36384 | FMC CORPLINK-BELT DIV |
| RC35-0L | 36384 | FMC CORPLINK-BELT DIV |
| 7691 | 89953 | GAF CORPOFFICE SYSTEMS DIV SALES AND SERVICE |
| 35-0L | 2Y614 | LINK-BELT CONSTRUCTION EQUIPMENTCOMPANY, L.P., LLLP |
| RC35-0L | 2Y614 | LINK-BELT CONSTRUCTION EQUIPMENTCOMPANY, L.P., LLLP |
| MS421-35-1RC3CLA | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
| 749135 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 319353PC6 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| ASA35-0L | 11406 | REXNORD HOLDINGS INC |
| 35-0L | 78985 | UNION CHAINDIV OF UST INC |
| 11P02 | 05463 | WHEELABRATOR-FRYE INCBALCRANK PRODUCTS |
| 35-0L | 81130 | WHITNEY CHAIN OPERATION POWERTRANSMISSION DIV DRESSER INDUSTRIES |
Technical Data | NSN 3020-00-240-6737
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 0.375 INCHES |
| LINK STYLE | ROLLERLESS, TAPERED EDGE |
| LINK PLATE NOMINAL THICKNESS | 0.0500 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.1410 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.1875 INCHES |
| LINK BUSHING NOMINAL OUTSIDE DIAMETER | 0.2000 INCHES |
| LINK PLATE WIDTH AT BUSHING END | 0.356 INCHES NOMINAL |
| LINK PLATE WIDTH AT PIN END | 0.307 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| PIN FASTENING METHOD | RIVETED |
| MINIMUM TENSILE STRENGTH | 1760 POUNDS PER SQUARE INCH |
