NSN 3020-00-241-0130
Part Details | CONE PULLEY
3020-00-241-0130 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Alternate Parts: 458901, 1C4315, 3020-00-241-0130, 00-241-0130, 3020002410130, 002410130
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | NOV 05, 1969 | 00-241-0130 | 08110 ( PULLEY, CONE ) |

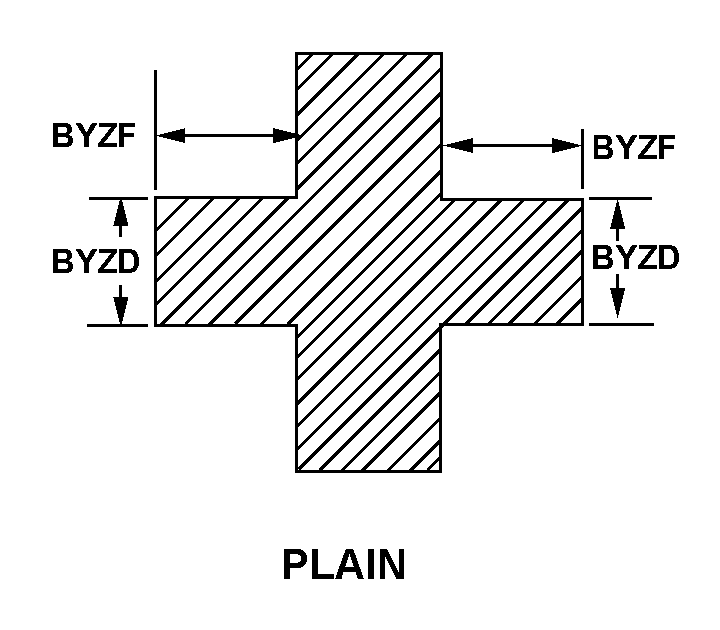

REFERENCE DRAWINGS & PICTURES
PLAIN
Cross Reference | NSN 3020-00-241-0130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 458901 | 19139 | EASTMAN KODAK COMPANYDBA KODAK |
| 1C4315 | 19139 | EASTMAN KODAK COMPANYDBA KODAK |
Technical Data | NSN 3020-00-241-0130
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP CONE |
| STEP QUANTITY | 1 |
| FACE WIDTH | 1.406 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 0.875 INCHES NOMINAL |
| STYLE DESIGNATOR | PLAIN |
| DESIGN FORM | PLAIN |
| LIGHTENING HOLE | NOT INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| MATERIAL AND LOCATION | RUBBER OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | NOT INCLUDED |
| BORE DIAMETER | 0.219 INCHES NOMINAL |
| BORE LENGTH | 1.406 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
| PROTRUDING HUB CHARACTERISTIC | PLAIN |
| HUB END OUTSIDE DIAMETER AND LOCATION | BBZ0.750 INCHES NOMINAL AND BCA0.844 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION | BBZ0.375 INCHES NOMINAL AND BCA0.781 INCHES NOMINAL |
| SPLIT HUB FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | W/STRAIGHT SURFACE; 1,UNIT QTY |
