NSN 3020-00-243-9803
Part Details | ROLLER CHAIN
3020-00-243-9803 A flexible mechanical device consisting of one or more rows of links used for conveying or power transmission. The link side plates are flat or offset and are spaced apart by rollers, bushings and/or pins. The chain mates with a sprocket with an articulating action. The non-rotating bushing type chain is limited to that designated by the American National Standards Institute as "roller chain". Excludes CHAIN, BLOCK.
Alternate Parts: 4719984, 47199849, 4719984-9, 3020-00-243-9803, 00-243-9803, 3020002439803, 002439803
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | MAR 12, 1971 | 00-243-9803 | 04457 ( CHAIN, ROLLER ) |
REFERENCE DRAWINGS & PICTURES
ROLLER

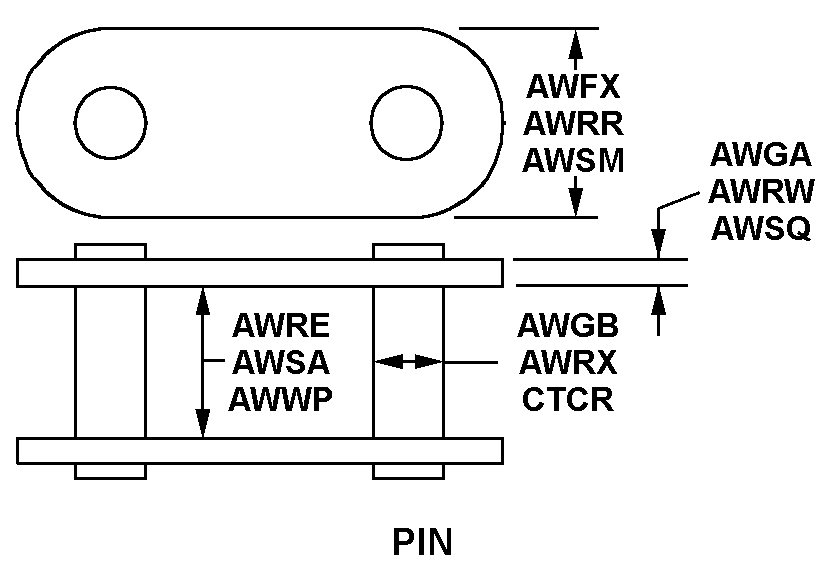

PIN
ROLLER
PIN
ROLLER
PIN
Cross Reference | NSN 3020-00-243-9803
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4719984 | 6N299 | AGCO CORPPARTS OPN |
| 4719984-9 | 0AHU0 | KALMAR AC INC |
Technical Data | NSN 3020-00-243-9803
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FIRST CHAIN LINK STYLE | ROLLER |
| SECOND CHAIN LINK STYLE | PIN |
| LINK ROW QUANTITY | 1 |
| PIN FASTENING METHOD | COTTER PIN |
| MINIMUM TENSILE STRENGTH | 24000 POUNDS PER SQUARE INCH |
| EFFECTIVE LENGTH | 7.7500 FEET NOMINAL |
