NSN 3020-00-267-0351
Part Details | SPUR GEAR
3020-00-267-0351 A gear, cylindrical in form, with straight teeth on the outer surface parallel to the axis of the gear. See also GEAR, ANTIBACKLASH, SPUR. For bulk material, see ROD, PINION.
Alternate Parts: 321390070, 3213-9007-0, 200263, 00026320, 3020-00-267-0351, 00-267-0351, 3020002670351, 002670351
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JUL 11, 1973 | 00-267-0351 | 05466 ( GEAR, SPUR ) |
REFERENCE DRAWINGS & PICTURES

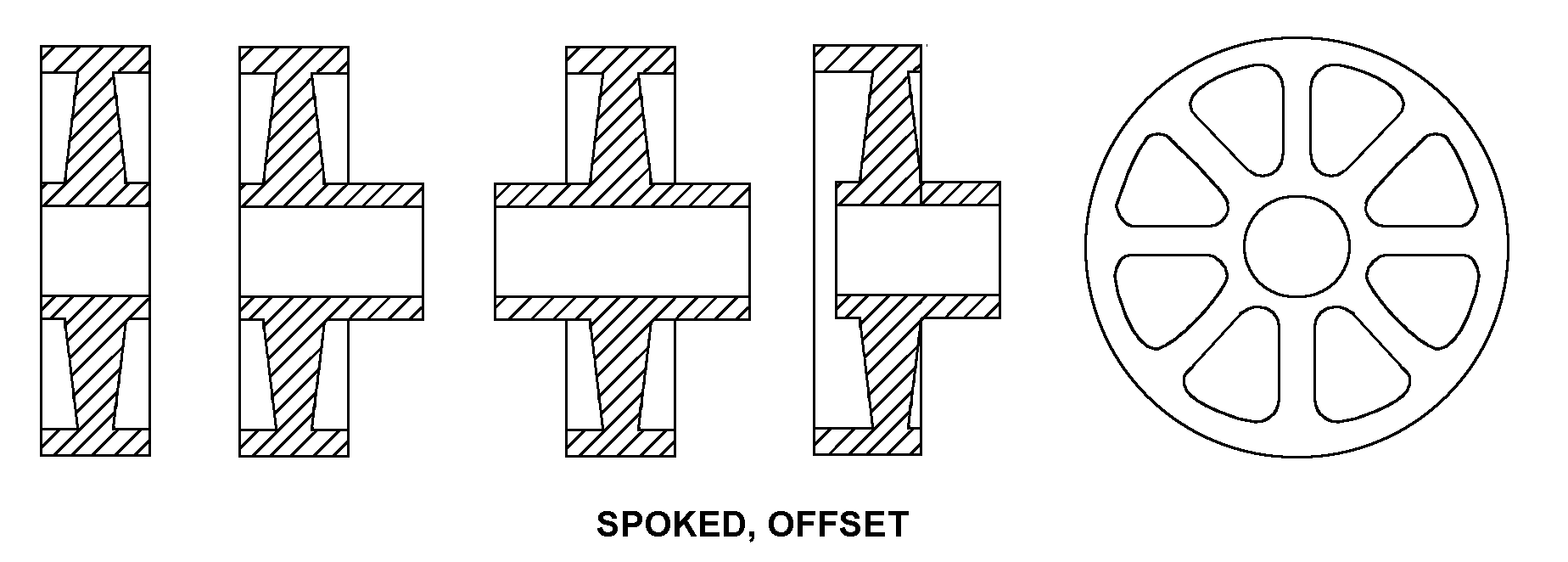

SPOKED, OFFSET
PROTRUDING HUB
Cross Reference | NSN 3020-00-267-0351
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3213-9007-0 | 11939 | KIDDE FIRE FIGHTING, INC.DIV NATIONAL FOAM |
| 200263 | 11939 | KIDDE FIRE FIGHTING, INC.DIV NATIONAL FOAM |
| 00026320 | 11939 | KIDDE FIRE FIGHTING, INC.DIV NATIONAL FOAM |
Technical Data | NSN 3020-00-267-0351
| Characteristic | Specifications |
|---|---|
| TEETH QUANTITY | 64 |
| TOOTH FORM | STANDARD |
| STYLE DESIGNATOR | PROTRUDING HUB |
| PITCH DIAMETER | 5.3120 INCHES NOMINAL |
| NOMINAL OUTSIDE DIAMETER | 5.500 INCHES |
| FACE NOMINAL WIDTH | 0.750 INCHES |
| BODY STYLE | SPOKED, OFFSET |
