Part Details | ROLLER CHAIN LINK
3020-00-267-1886 An assembled unit of a CHAIN, ROLLER consisting of side plates, roller(s), bushing(s), or pin(s). It may be a single or double pitch. Links containing bushings without rollers shall be as designated by the American National Standards Institute as "roller chain." Excludes LINK, CHAIN (as modified); and PULLEY, SASH.
Alternate Parts: 250D3801NL, 25-0D3801NL, 250L, 25-0L, ASA250L, 250L, 25-0L, 250L, 25-0L, SINGLE890L, SINGLE89-0L, 3020-00-267-1886, 00-267-1886, 3020002671886, 002671886
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JAN 01, 1961 | 00-267-1886 | 04488 ( LINK, ROLLER CHAIN ) |

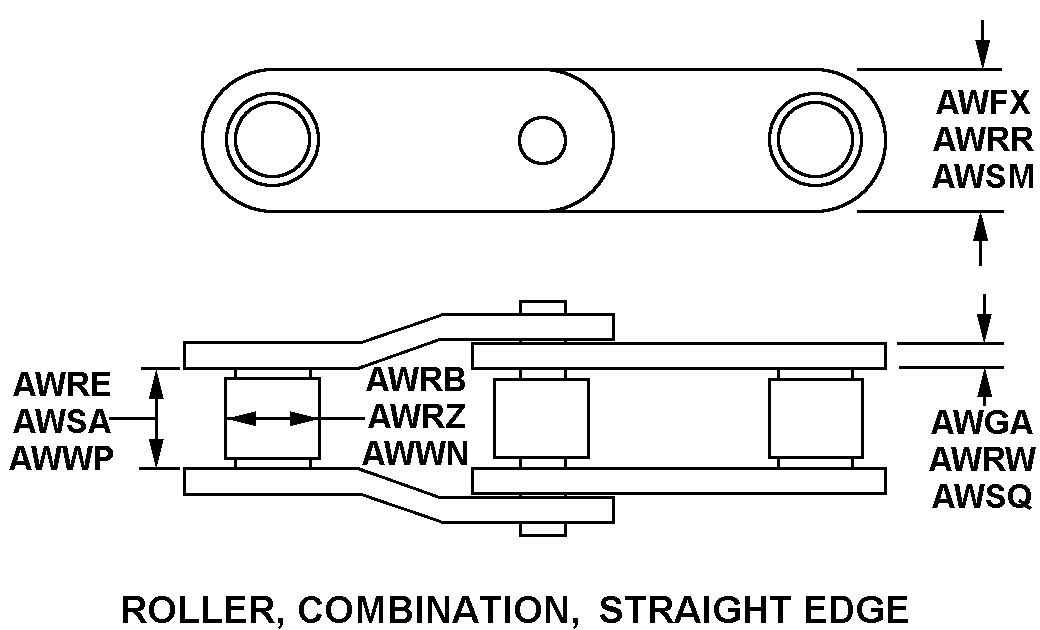

REFERENCE DRAWINGS & PICTURES
ROLLERLESS, STRAIGHT EDGE
Cross Reference | NSN 3020-00-267-1886
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25-0D3801NL | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| 25-0L | 71041 | ALTRA INDUSTRIAL MOTION CORP.DIV BOSTON GEAR |
| ASA250L | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| 25-0L | 80204 | AMERICAN NATIONAL STANDARDSINSTITUTE, INCORPORATED |
| 25-0L | 15405 | CULLMAN WHEEL CO |
| SINGLE89-0L | 72625 | DIAMOND CHAIN CODIV OF AMSTED INDUSTRIES INC |
Technical Data | NSN 3020-00-267-1886
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| NOMINAL PITCH DISTANCE | 0.250 INCHES |
| LINK STYLE | ROLLERLESS, STRAIGHT EDGE |
| LINK PLATE NOMINAL THICKNESS | 0.0300 INCHES |
| LINK PIN NOMINAL DIAMETER | 0.0905 INCHES |
| LINK NOMINAL WIDTH BETWEEN PLATES | 0.1250 INCHES |
| LINK BUSHING NOMINAL OUTSIDE DIAMETER | 0.1300 INCHES |
| LINK PLATE WIDTH | 0.237 INCHES NOMINAL |
| LINK ROW QUANTITY | 1 |
| PIN FASTENING METHOD | RIVETED |
| MINIMUM TENSILE STRENGTH | 925 POUNDS PER SQUARE INCH |
