NSN 3020-00-282-8074
Part Details | CONE PULLEY
3020-00-282-8074 A pulley having two or more adjoining grooved, flat or crowned faces in steps of different diameters or one having a single tapered face. For pulleys encased in a shell or frame, see BLOCK, TACKLE.
Alternate Parts: 7903448, 3020-00-282-8074, 00-282-8074, 3020002828074, 002828074
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | AUG 26, 1973 | 00-282-8074 | 08110 ( PULLEY, CONE ) |
REFERENCE DRAWINGS & PICTURES

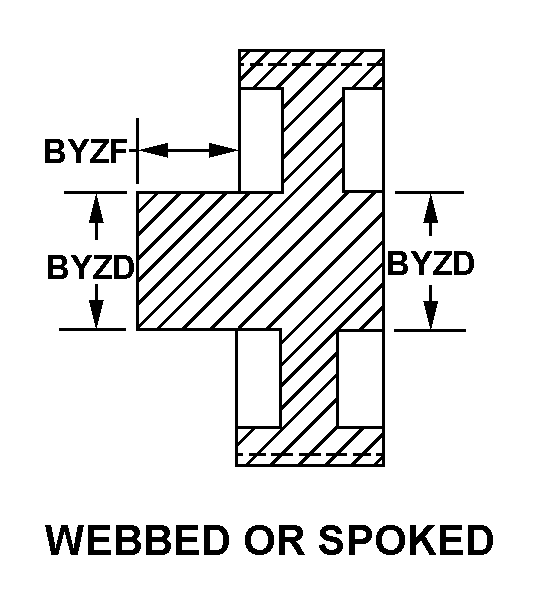

WEBBED OR SPOKED
Cross Reference | NSN 3020-00-282-8074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7903448 | 93322 | GE AVIATION SYSTEMS LLCDBA GE AVIATION |
Technical Data | NSN 3020-00-282-8074
| Characteristic | Specifications |
|---|---|
| FACE TYPE | STEP CONE |
| STEP QUANTITY | 2 |
| FACE WIDTH | 0.375 INCHES NOMINAL AND 0.375 INCHES NOMINAL |
| STEP OUTSIDE DIAMETER | 1.875 INCHES NOMINAL AND 0.326 INCHES NOMINAL |
| STYLE DESIGNATOR | WEBBED OR SPOKED |
| DESIGN FORM | WEBBED |
| WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE | NOT OFFSET |
| LIGHTENING HOLE | INCLUDED |
| INTEGRAL COOLING VANE | NOT INCLUDED |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| BORE BEARING | NOT INCLUDED |
| BORE TYPE | STRAIGHT |
| COUNTERBORE FEATURE | INCLUDED |
| COUNTERBORE LOCATION | BOTH ENDS |
| COUNTERBORE DIAMETER | 0.375 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.125 INCHES NOMINAL |
| BORE DIAMETER | 0.198 INCHES NOMINAL |
| BORE LENGTH | 1.000 INCHES NOMINAL |
| KEYING FACILITY | NOT INCLUDED |
