NSN 3040-00-059-5386
Part Details | BALL JOINT
3040-00-059-5386 An item in which the end of one member is partly spherical and fits into a corresponding spherical cavity in the other member, thus permitting a relative angular movement. Excludes items specifically designed for vehicular steering and torsion application.
Alternate Parts: 111B0060, 111-B-0060, 3040-00-059-5386, 00-059-5386, 3040000595386, 000595386
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | JUN 08, 1967 | 00-059-5386 | 16619 ( BALL JOINT ) |
REFERENCE DRAWINGS & PICTURES

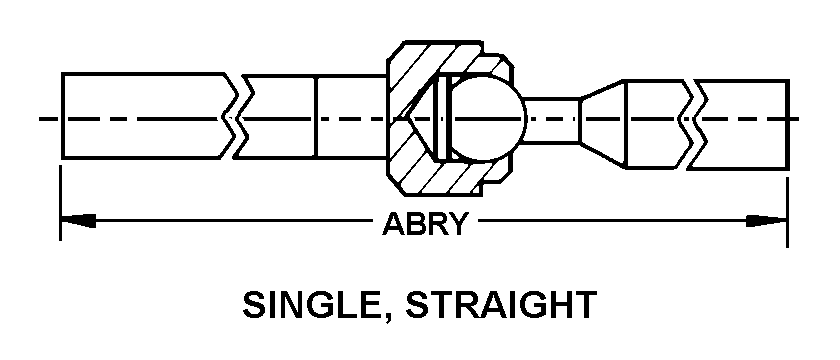

SINGLE, STRAIGHT
Cross Reference | NSN 3040-00-059-5386
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 111-B-0060 | 04638 | TRANSDIGM, INC.DBA AEROCONTROLEX |
Technical Data | NSN 3040-00-059-5386
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | SINGLE, STRAIGHT |
| LENGTH | 3.000 INCHES NOMINAL |
| BALL END CONNECTION THREAD PROVISION | THREADED |
| BALL END THREAD LOCATION | EXTERNAL |
| BALL END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 TO 4-28 UNF |
| BALL END THREAD DIRECTION | RIGHT |
| SOCKET END CONNECTION THREAD PROVISION | THREADED |
| SOCKET END THREAD LOCATION | INTERNAL |
| SOCKET END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 TO 4-28 UNF |
| SOCKET END THREAD DIRECTION | RIGHT |
| SPECIAL FEATURES | NONADJUSTABLE;SPRING-NOT INCL.;BALL END THD LGTH 1.250 IN. |
| END ITEM IDENTIFICATION | BELL HELICOPTER,MODEL OH-58A |
