NSN 3040-00-096-5943
Part Details | SHAFT COLLAR
3040-00-096-5943 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.
Alternate Parts: 821SB412, 821SB412, 3040-00-096-5943, 00-096-5943, 3040000965943, 000965943
Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
---|---|---|---|
30 | JAN 01, 1961 | 00-096-5943 | 13743 ( COLLAR, SHAFT ) |
REFERENCE DRAWINGS & PICTURES

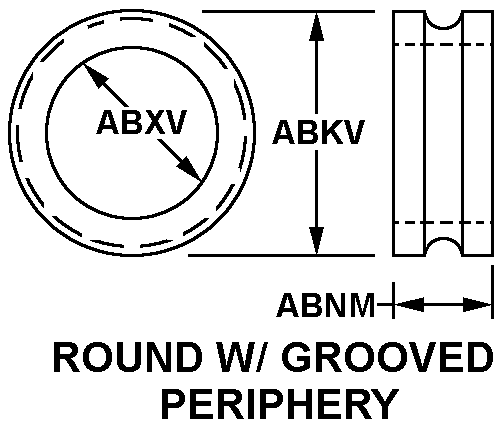

ROUND W/GROOVED PERIPHERY

Cross Reference | NSN 3040-00-096-5943
Part Number | Cage Code | Manufacturer |
---|---|---|
821SB412 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
821SB412 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
Technical Data | NSN 3040-00-096-5943
Characteristic | Specifications |
---|---|
MATERIAL | STEEL |
STYLE DESIGNATOR | ROUND W/GROOVED PERIPHERY |
OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
THICKNESS | 1.125 INCHES NOMINAL |
BORE DIAMETER | 0.5000 INCHES NOMINAL |
SECURING HOLE QUANTITY | 2 |
ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG | 180.0 |
SECURING HOLE TYPE AND LOCATION | UNTHREADED ALL HOLES |
HOLE DIAMETER AND LOCATION | AHL0.3125 INCHES NOMINAL |
SPECIAL FEATURES | CENTER BORE INTERNAL 0.750-10 UNC,0.686 IN. THD LG |
