Part Details | SHAFT COLLAR

3040-00-097-0983 An item designed to be mounted around a shaft to limit axial movement of the shaft and/or its assembled parts. It is secured directly to the shaft by use of a setscrew(s), pin(s), or the like, which may be a part of the item of supply. A pilot hole drilled in or through the wall(s) for drilling and pinning at application may be considered a method of securing. Solid items have a bearing surface on one or both end(s) perpendicular to the axis. For items designed to be mounted around the extended hub portion of a mounted item on a shaft or clamp around a shaft, see CLAMP, HUB. See also BEARING, SLEEVE; BUSHING, SLEEVE; SPACER, SLEEVE; and COUPLING, SHAFT, RIGID.

Alternate Parts: 552238172, 55-22381-72, Y10, R390PC26, R143ITEM6A, R142PC26, R140PC26, R138PC26, R136PC26, R131PC26, R129PC26, E13392, 3040-00-097-0983, 00-097-0983, 3040000970983, 000970983

REFERENCE DRAWINGS & PICTURES

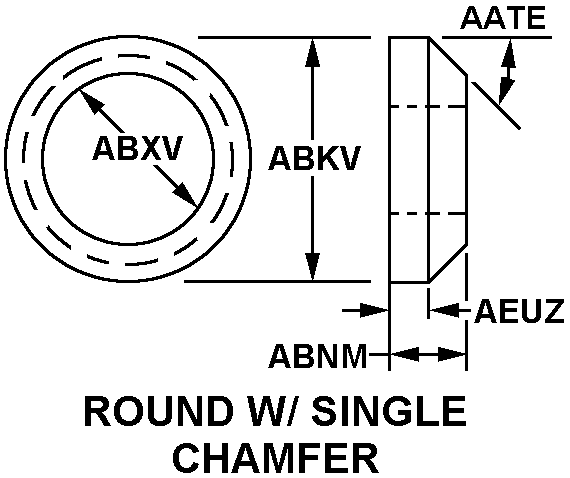

ROUND W/SINGLE CHAMFER
