NSN 3040-00-108-6262
Part Details | HUB CLAMP
3040-00-108-6262 An item designed to be mounted around the extended hub portion of a gear, wheel, or the like, to retain it securely to a shaft by compressing the slotted hub body. The item may also be used to clamp around a shaft, or the like, to prevent end motion or to retain it in position. Its compression quality is derived from a screw(s) or bolt(s) which may be a part of the item of supply. For items designed to secure directly to a shaft by use of setscrews, pins, or the like, see COLLAR, SHAFT. Excludes CLAMP, LOOP.
Alternate Parts: 1440001086262, 10234260, 10234260, 10234260, 3040-00-108-6262, 00-108-6262, 3040001086262, 001086262
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | DEC 24, 1972 | 00-108-6262 | 27781 ( CLAMP, HUB ) |
REFERENCE DRAWINGS & PICTURES
THREADED

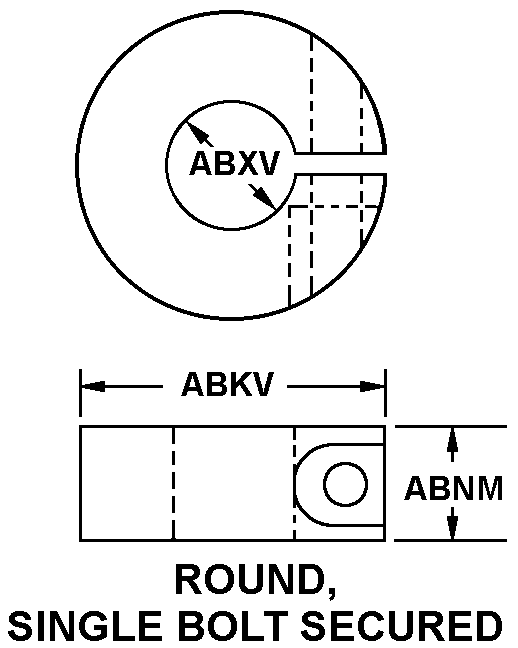

ROUND, SINGLE BOLT SECURED
Cross Reference | NSN 3040-00-108-6262
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1440001086262 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 10234260 | 09205 | LOCKHEED MARTIN CORPELECTRONICS AND MISSILES DIV |
| 10234260 | 18876 | U S ARMY AVIATION AND MISSILECOMMAND |
| 10234260 | 26772 | WEGO PRECISION MACHINE, INC. |
Technical Data | NSN 3040-00-108-6262
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | ROUND, SINGLE BOLT SECURED |
| OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| THICKNESS | 0.560 INCHES NOMINAL |
| BORE DIAMETER | 0.7500 INCHES NOMINAL |
| CLAMP SECURING HOLE STYLE | THREADED |
| PLAIN HOLE DIAMETER | 0.1960 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.3440 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.4280 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
