NSN 3040-00-113-4048
Part Details | BELL CRANK
3040-00-113-4048 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).
Alternate Parts: 9643M92G02, 3040-00-113-4048, 00-113-4048, 3040001134048, 001134048
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 30 | AUG 30, 1968 | 00-113-4048 | 22321 ( BELL CRANK ) |
REFERENCE DRAWINGS & PICTURES

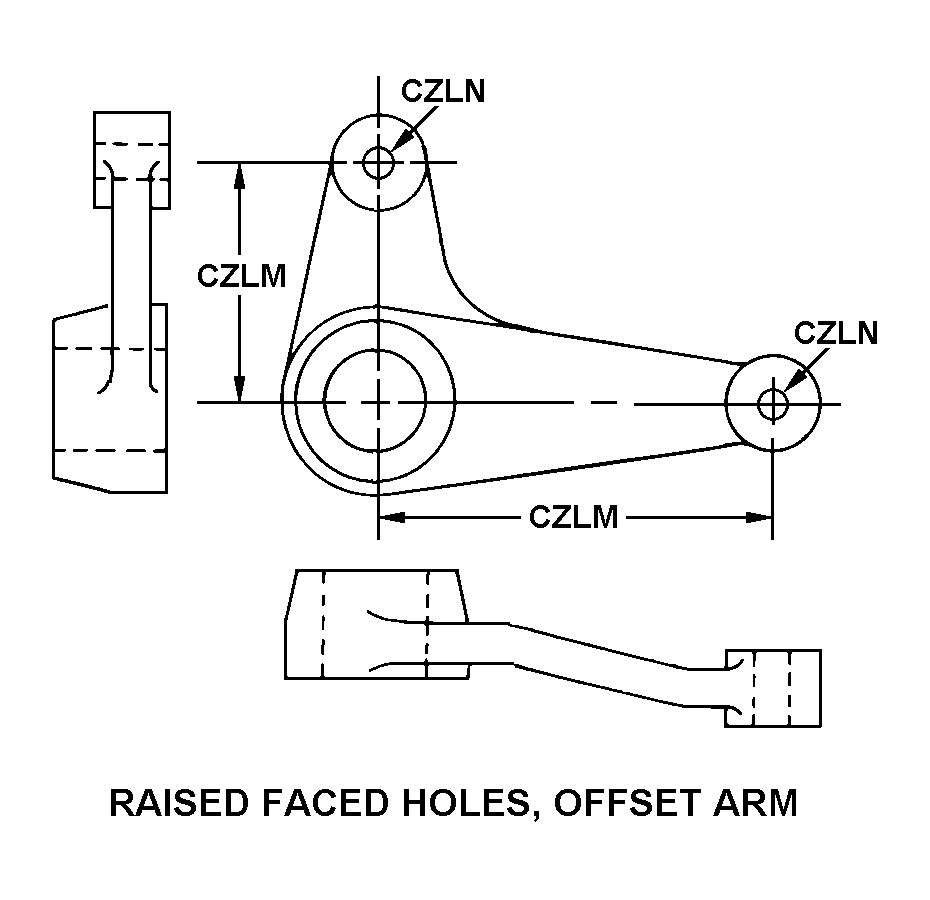

RAISED FACED HOLES, OFFSET ARM
Cross Reference | NSN 3040-00-113-4048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9643M92G02 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
Technical Data | NSN 3040-00-113-4048
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| STYLE DESIGNATOR | RAISED FACED HOLES, OFFSET ARM |
| BORE LENGTH | 0.860 INCHES NOMINAL |
| BORE DIAMETER | 0.620 INCHES NOMINAL |
| END ITEM IDENTIFICATION | ACFT ENG TF-39 |
