NSN 3110-00-066-9765
Part Details | SELF-ALIGNING ROLLER BEARING
3110-00-066-9765 An antifriction bearing having a cylindrical rolling element and one spherical raceway which will adjust to varying degrees of shaft and/or support misalignment without damage to the raceways and permits the full rating of the bearing to be utilized.
Alternate Parts: 209653, 20965-3, 20965, 3110-00-066-9765, 00-066-9765, 3110000669765, 000669765
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-066-9765 | 00016 ( BEARING, ROLLER, SELF-ALIGNING ) |
REFERENCE DRAWINGS & PICTURES

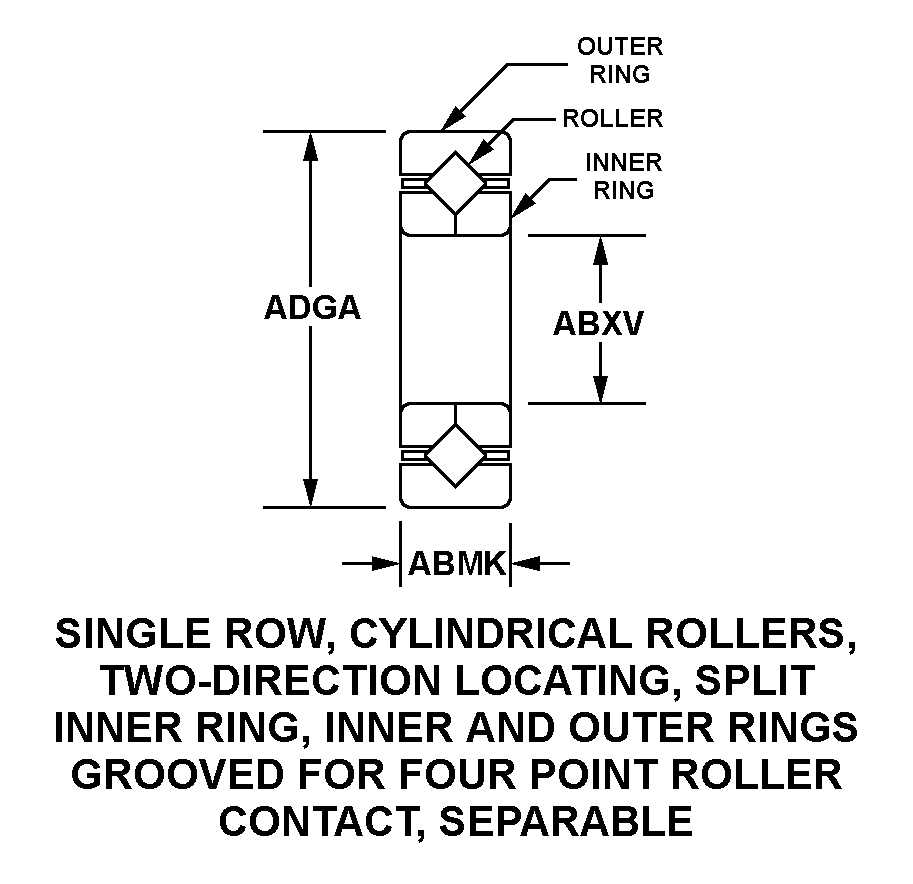

SINGLE ROW, CYLINDRICAL ROLLERS, TWO-DIRECTION LOCATING, SPLIT INNER RING, INNER AND OUTER RINGS GROOVED FOR FOUR POINT ROLLER CONTACT SEPARABLE
Cross Reference | NSN 3110-00-066-9765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20965-3 | 39820 | MESSINGER BEARINGS CORPORATION |
| 20965 | 39820 | MESSINGER BEARINGS CORPORATION |
Technical Data | NSN 3110-00-066-9765
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, CYLINDRICAL ROLLERS, TWO-DIRECTION LOCATING, SPLIT INNER RING, INNER AND OUTER RINGS GROOVED FOR FOUR POINT ROLLER CONTACT SEPARABLE |
| OVERALL WIDTH | 0.9990 INCHES MINIMUM AND 0.9992 INCHES MAXIMUM |
| BORE DIAMETER | 12.1250 INCHES MINIMUM AND 12.1252 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 14.1245 INCHES MINIMUM AND 14.1250 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
