NSN 3110-00-079-5130
Part Details | BEARING RETAINER AND ROLLERS
3110-00-079-5130 An assembled inner component of a roller bearing, consisting of a frame or inclosure which spaces and retains the rolling elements of a BEARING, ROLLER (as modified) and the rollers which are the rolling elements in a BEARING, ROLLER (as modified).
Alternate Parts: 7067432, 706743-2, NTA1220SS, 3110-00-079-5130, 00-079-5130, 3110000795130, 000795130
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 08, 1967 | 00-079-5130 | 00035 ( RETAINER AND ROLLERS, BEARING ) |
REFERENCE DRAWINGS & PICTURES

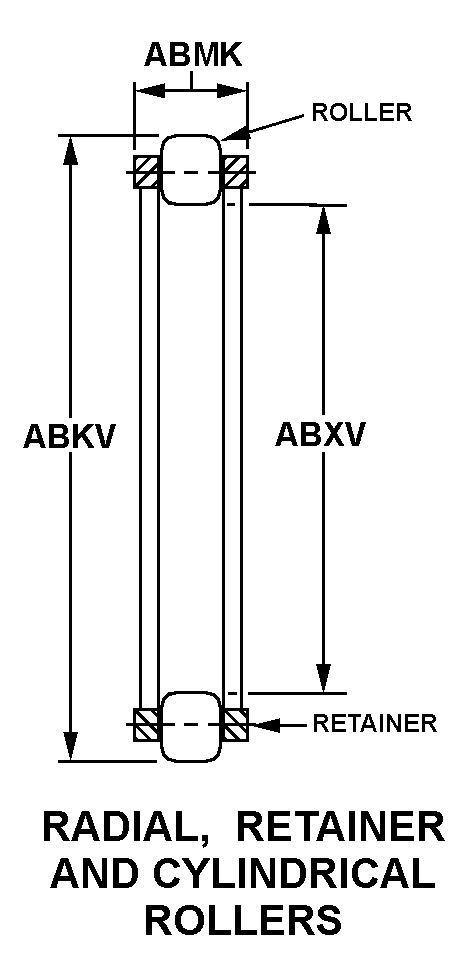

RADIAL, RETAINER AND CYLINDRICAL ROLLERS
Cross Reference | NSN 3110-00-079-5130
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 706743-2 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| NTA1220SS | 60380 | TIMKEN AEROSPACE, INCDBA TORRINGTON PRODUCT |
Technical Data | NSN 3110-00-079-5130
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RADIAL, RETAINER AND CYLINDRICAL ROLLERS |
| OUTSIDE DIAMETER | 1.2300 INCHES MINIMUM AND 1.2400 INCHES MAXIMUM |
| OVERALL WIDTH | 0.0779 INCHES MINIMUM AND 0.0781 INCHES MAXIMUM |
| BORE DIAMETER | 0.7520 INCHES MINIMUM AND 0.7570 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | PRESSED |
| RETAINER PIECE QUANTITY | 2 |
