NSN 3110-00-082-1308
Part Details | DUPLEX BALL BEARING
3110-00-082-1308 Two single row annular ball bearings selected dimensionally to be a matched pair or set. The ring faces have been specially ground to specified offsets that will produce predetermined preload when mounted. May include a single row angular contact bearing with faces specially ground for duplex mounting.
Alternate Parts: 2MM9106WIDUM, 2MM9106WICRDUM, 2MM9106WICRC5, 2MM9106WICR, 3110-00-082-1308, 00-082-1308, 3110000821308, 000821308
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-082-1308 | 30213 ( BEARING, BALL, DUPLEX ) |
REFERENCE DRAWINGS & PICTURES

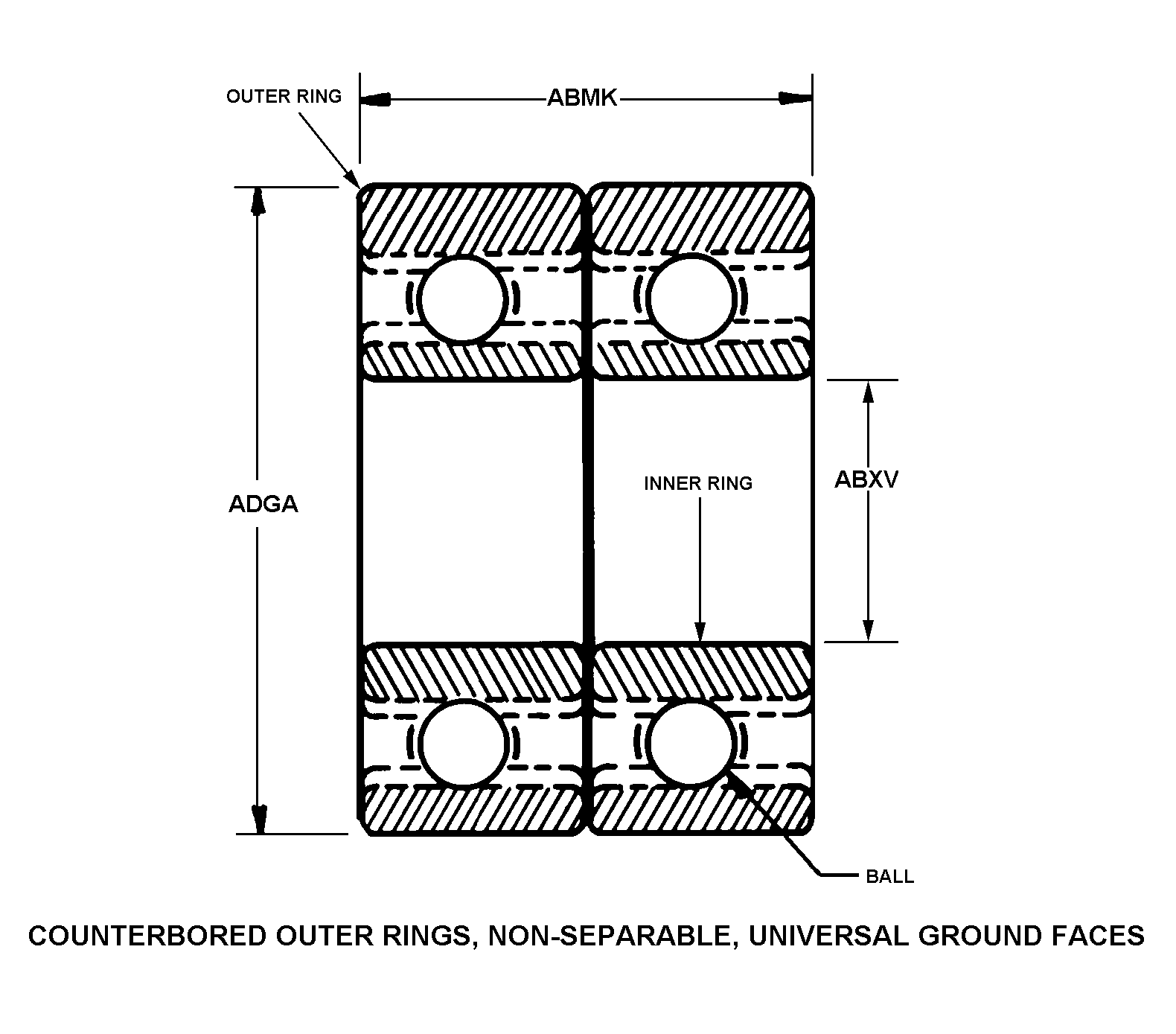

COUNTERBORED OUTER RINGS, NON-SEPARABLE, UNIVERSAL GROUND FACES
Cross Reference | NSN 3110-00-082-1308
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2MM9106WIDUM | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 2MM9106WICRDUM | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 2MM9106WICRC5 | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
| 2MM9106WICR | 21335 | TIMKEN COMPANY, THEDIV TIMKEN AEROSPACE |
Technical Data | NSN 3110-00-082-1308
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RINGS, NON-SEPARABLE, UNIVERSAL GROUND FACES |
| OVERALL WIDTH | 0.5068 INCHES MINIMUM AND 0.5118 INCHES MAXIMUM |
| BORE DIAMETER | 1.1811 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.1654 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.7 |
| SURFACE FINISH | GROUND |
| LOAD DIRECTION | ANGULAR |
| CONTACT ANGLE | 15.0 DEGREES NOMINAL |
