NSN 3110-00-082-8816
Part Details | THRUST ROLLER BEARING
3110-00-082-8816 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Alternate Parts: 4D3463, T209, 3110-00-082-8816, 00-082-8816, 3110000828816, 000828816
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 24, 1972 | 00-082-8816 | 00020 ( BEARING, ROLLER, THRUST ) |
REFERENCE DRAWINGS & PICTURES

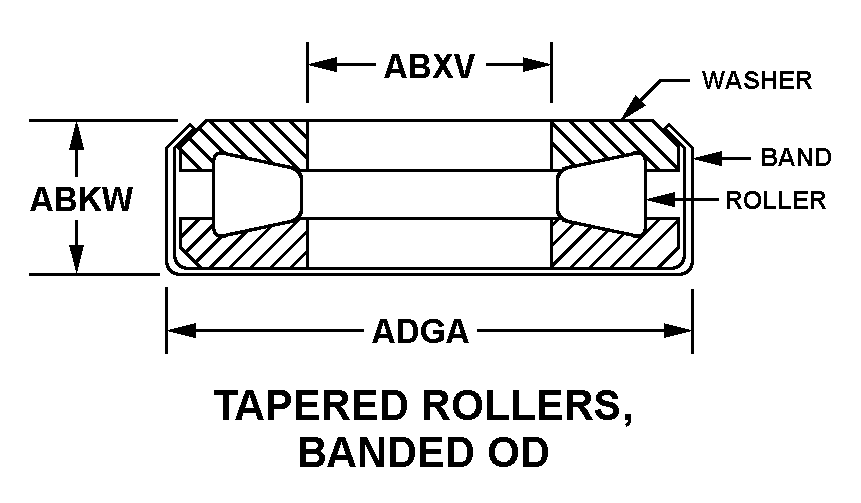

TAPERED ROLLERS, BANDED OD
Cross Reference | NSN 3110-00-082-8816
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4D3463 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| T209 | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
Technical Data | NSN 3110-00-082-8816
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED ROLLERS, BANDED OD |
| OVERALL HEIGHT | 1.0313 INCHES NOMINAL |
| BORE DIAMETER | 2.0720 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.6720 INCHES NOMINAL |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
| SPECIAL FEATURES | N0 OIL HOLE IN BAND ALSO 0.030 IN. BY 45 DEG CORNER CHAMFER ID OF RINGS |
