NSN 3110-00-083-2514
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-083-2514 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 381759, 3110-00-083-2514, 00-083-2514, 3110000832514, 000832514
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 24, 1972 | 00-083-2514 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

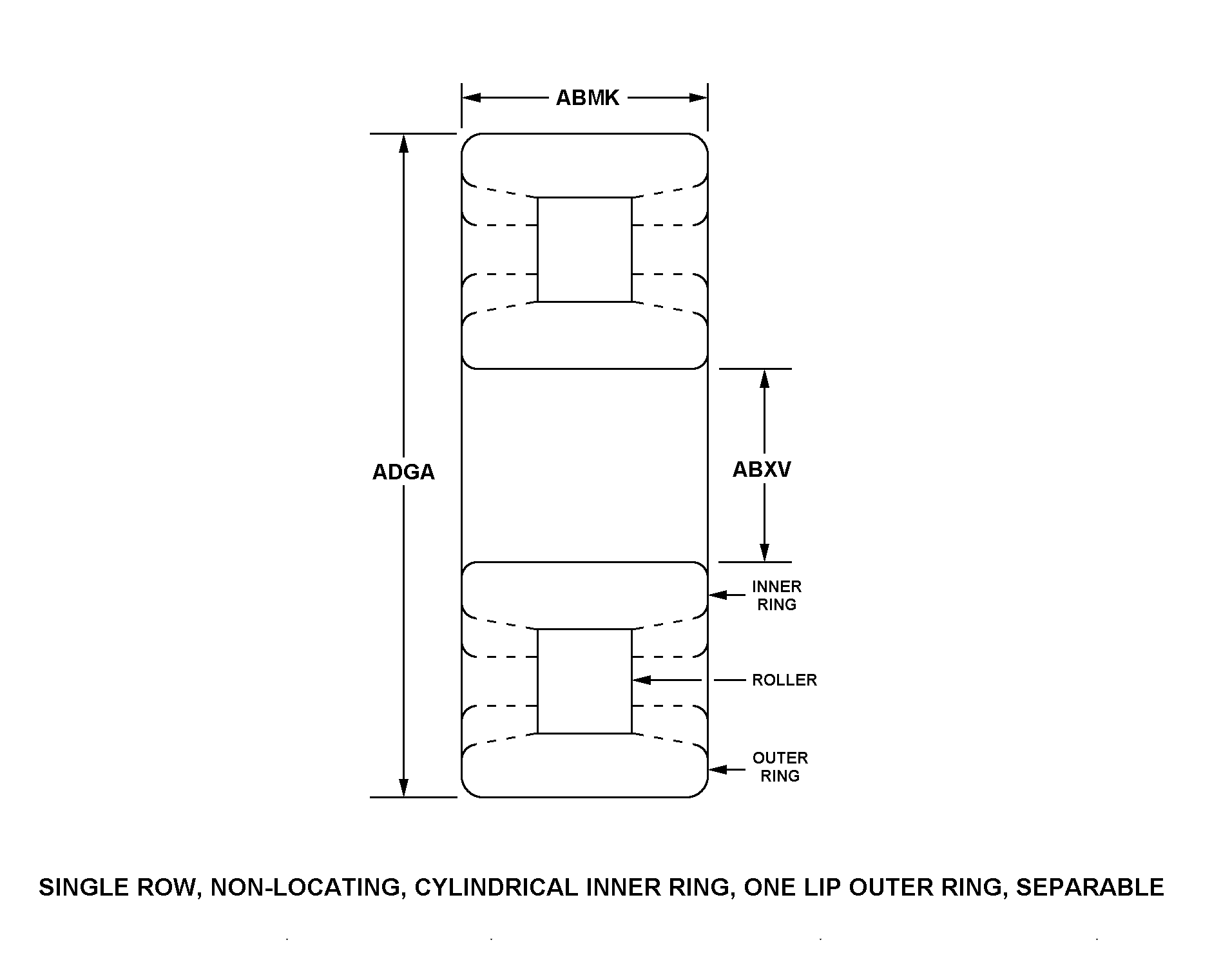

SINGLE ROW, NON-LOCATING, CYLINDRICAL INNER RING, ONE LIP OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-083-2514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 381759 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 3110-00-083-2514
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, NON-LOCATING, CYLINDRICAL INNER RING, ONE LIP OUTER RING, SEPARABLE |
| OVERALL WIDTH | 6.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 10.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 22.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0005 INCHES MINIMUM AND R0.0015 INCHES MAXIMUM |
