NSN 3110-00-083-9940
Part Details | THRUST ROLLER BEARING
3110-00-083-9940 An antifriction bearing having a roller rolling element, designed to resist axial thrust, or to support an axial load.
Alternate Parts: 29415B, 29415, 3110-00-083-9940, 00-083-9940, 3110000839940, 000839940
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | NOV 17, 1972 | 00-083-9940 | 00020 ( BEARING, ROLLER, THRUST ) |

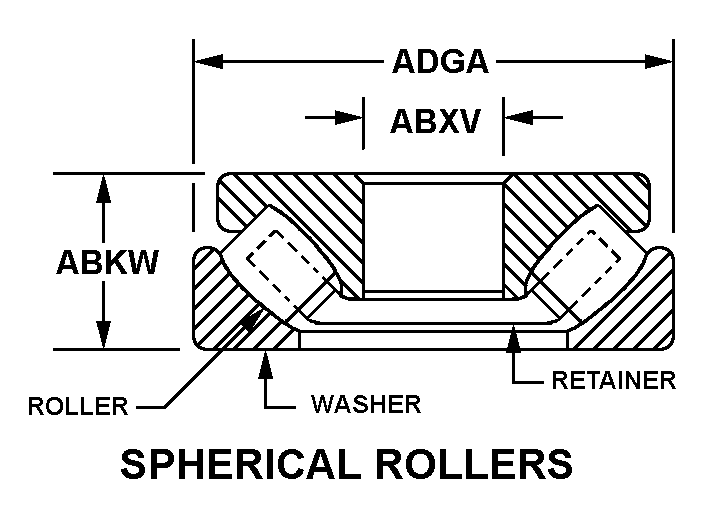

REFERENCE DRAWINGS & PICTURES
SPHERICAL ROLLERS
Cross Reference | NSN 3110-00-083-9940
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29415B | 52676 | SKF USA INC. |
| 29415 | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-083-9940
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPHERICAL ROLLERS |
| OVERALL HEIGHT | 51.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 75.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 160.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR THRUST BEARINGS |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | PRESSED |
| ALIGNMENT TYPE | RIGID |
| THRUST DIRECTIONAL CAPABILITY DESIGNATION | SINGLE |
