NSN 3110-00-084-7121
Part Details | BEARING BALL RETAINER
3110-00-084-7121 A frame or inclosure which spaces and retains the rolling elements of a BEARING, BALL (as modified).
Alternate Parts: 3632611, 363261-1, 3110-00-084-7121, 00-084-7121, 3110000847121, 000847121
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | DEC 15, 1967 | 00-084-7121 | 00032 ( RETAINER, BALL, BEARING ) |
REFERENCE DRAWINGS & PICTURES

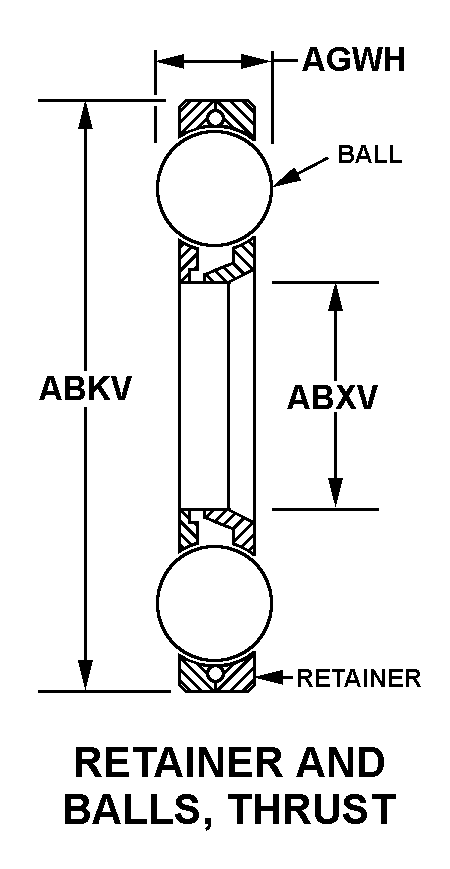

RETAINER AND BALLS, THRUST
Cross Reference | NSN 3110-00-084-7121
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 363261-1 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 3110-00-084-7121
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINER AND BALLS, THRUST |
| OUTSIDE DIAMETER | 1.6038 INCHES MINIMUM AND 1.6041 INCHES MAXIMUM |
| BORE DIAMETER | 1.3774 INCHES MINIMUM AND 1.3778 INCHES MAXIMUM |
| ROLLING ELEMENT DIAMETER | 0.3750 INCHES MINIMUM AND 0.3850 INCHES MAXIMUM |
| RETAINER FABRICATION METHOD | PRESSED |
| RETAINER PIECE QUANTITY | 1 |
