NSN 3110-00-100-0767
Part Details | TAPERED ROLLER BEARING CONE AND ROLLERS
3110-00-100-0767 An assembled inner component of a tapered roller bearing, consisting of a cone (which provides a contact surface for the rolling elements of the bearing), a complement of tapered rollers (the rolling elements), and frequently a retainer (which spaces the rolling elements).
Alternate Parts: FFB187A, FF-B-187A, 3382T, BT3382T, 30171, 30171, 1109Y, ST757, 1109Y, ST757, 3382T, 3110-00-100-0767, 00-100-0767, 3110001000767, 001000767
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1961 | 00-100-0767 | 00023 ( CONE AND ROLLERS, TAPERED ROLLER BEARING ) |
REFERENCE DRAWINGS & PICTURES

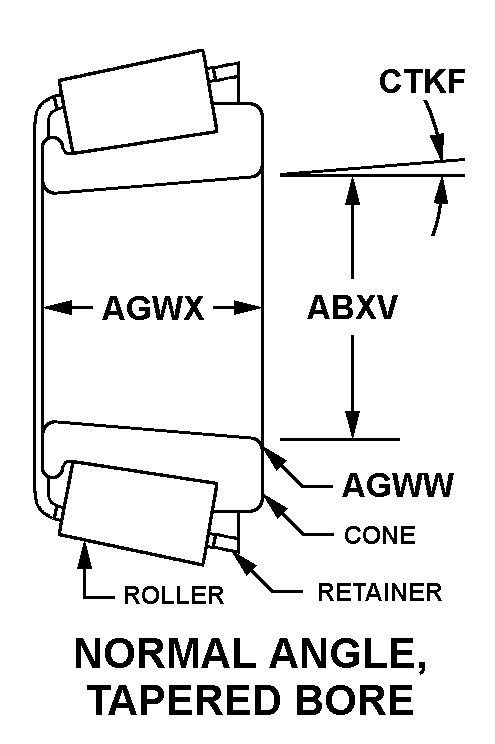

NORMAL ANGLE, TAPERED BORE
Cross Reference | NSN 3110-00-100-0767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF-B-187A | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| 3382T | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| BT3382T | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| 30171 | 30076 | HYSTER-YALE GROUP, INC. |
| 30171 | 04627 | HYSTER-YALE GROUP, INC. |
| 1109Y | 29930 | INTERNATIONAL HARVESTER COAGRICULTURAL EQUIPMENT DIV |
| ST757 | 29930 | INTERNATIONAL HARVESTER COAGRICULTURAL EQUIPMENT DIV |
| 1109Y | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| ST757 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 3382T | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
Technical Data | NSN 3110-00-100-0767
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NORMAL ANGLE, TAPERED BORE |
| TAPER | 1.000 PER FOOT IN INCHES NOMINAL |
| BORE DIAMETER | 1.5625 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.1400 INCHES NOMINAL |
| CONE WIDTH | 1.1965 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
