NSN 3110-00-100-5661
Part Details | TAPERED ROLLER BEARING
3110-00-100-5661 A cylindrical device in which the inner cone or outer cup turns upon a single or double row of tapered hardened rollers which roll easily in a race, thus minimizing friction and designed to carry a radial load and capable of sustaining axial thrust. Excludes BEARING, ROLLER, THRUST.
Alternate Parts: 2688226822B, 26882-26822B, 3110-00-100-5661, 00-100-5661, 3110001005661, 001005661
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-100-5661 | 00021 ( BEARING, ROLLER, TAPERED ) |
REFERENCE DRAWINGS & PICTURES

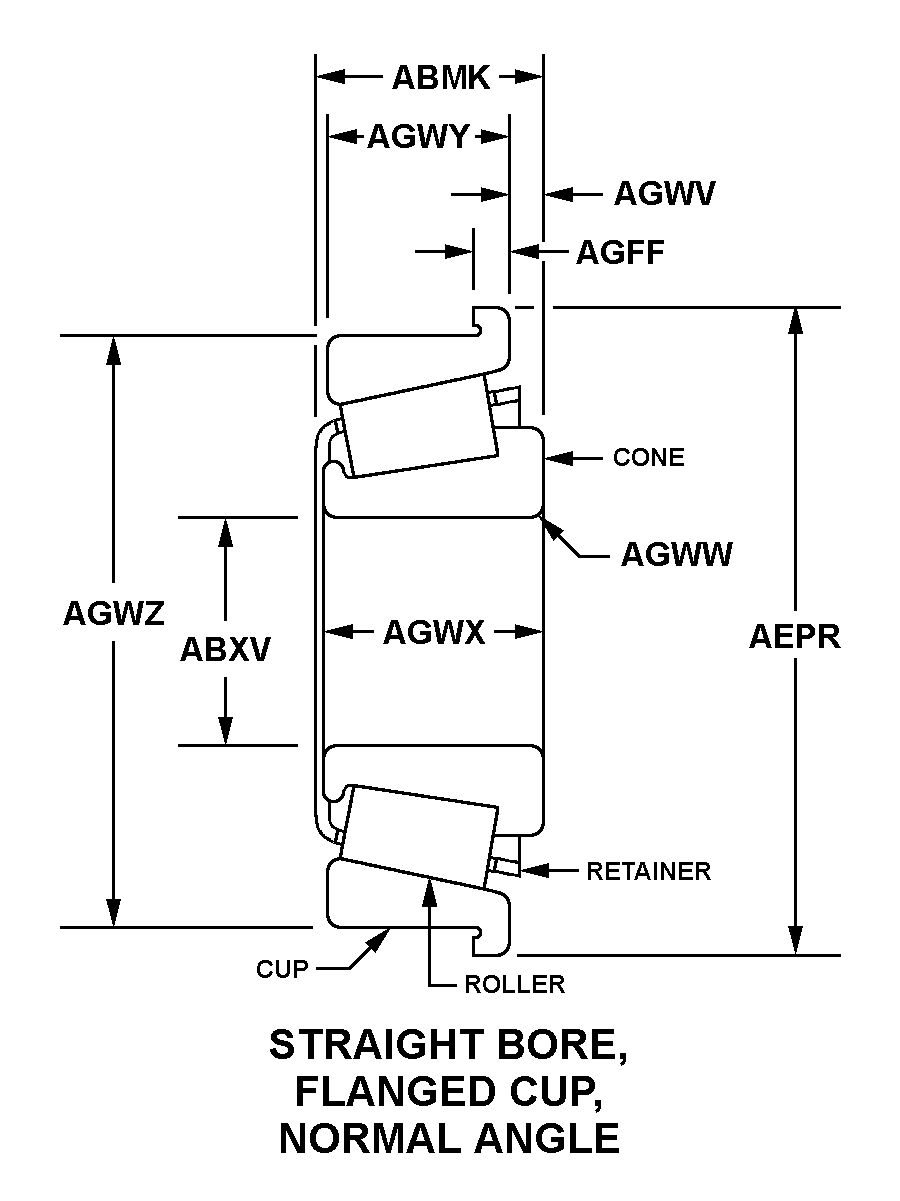

STRAIGHT BORE, FLANGED CUP, NORMAL ANGLE
Cross Reference | NSN 3110-00-100-5661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 26882-26822B | 60038 | TIMKEN CORPORATION, THEDIV TIMKEN COMPANY |
Technical Data | NSN 3110-00-100-5661
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT BORE, FLANGED CUP, NORMAL ANGLE |
| OVERALL WIDTH | 0.9375 INCHES NOMINAL |
| BORE DIAMETER | 1.6250 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 3.2812 INCHES NOMINAL |
| FLANGE WIDTH | 0.1563 INCHES NOMINAL |
| BACKFACE CORNER RADIUS | 0.0310 INCHES NOMINAL |
| STANDOUT WIDTH | 0.3438 INCHES NOMINAL |
| CONE CORNER RADIUS | 0.1400 INCHES NOMINAL |
| CONE WIDTH | 1.0000 INCHES NOMINAL |
| CUP WIDTH | 0.7500 INCHES NOMINAL |
| CUP OUTSIDE DIAMETER | 3.1250 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA CLASS 2 |
| RETAINER FABRICATION METHOD | PRESSED |
