NSN 3110-00-100-7330
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-100-7330 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: U0905TM, U0905TM, U0905TM, 20951, B20951, 170739A, I70739A, 3110-00-100-7330, 00-100-7330, 3110001007330, 001007330
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-100-7330 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

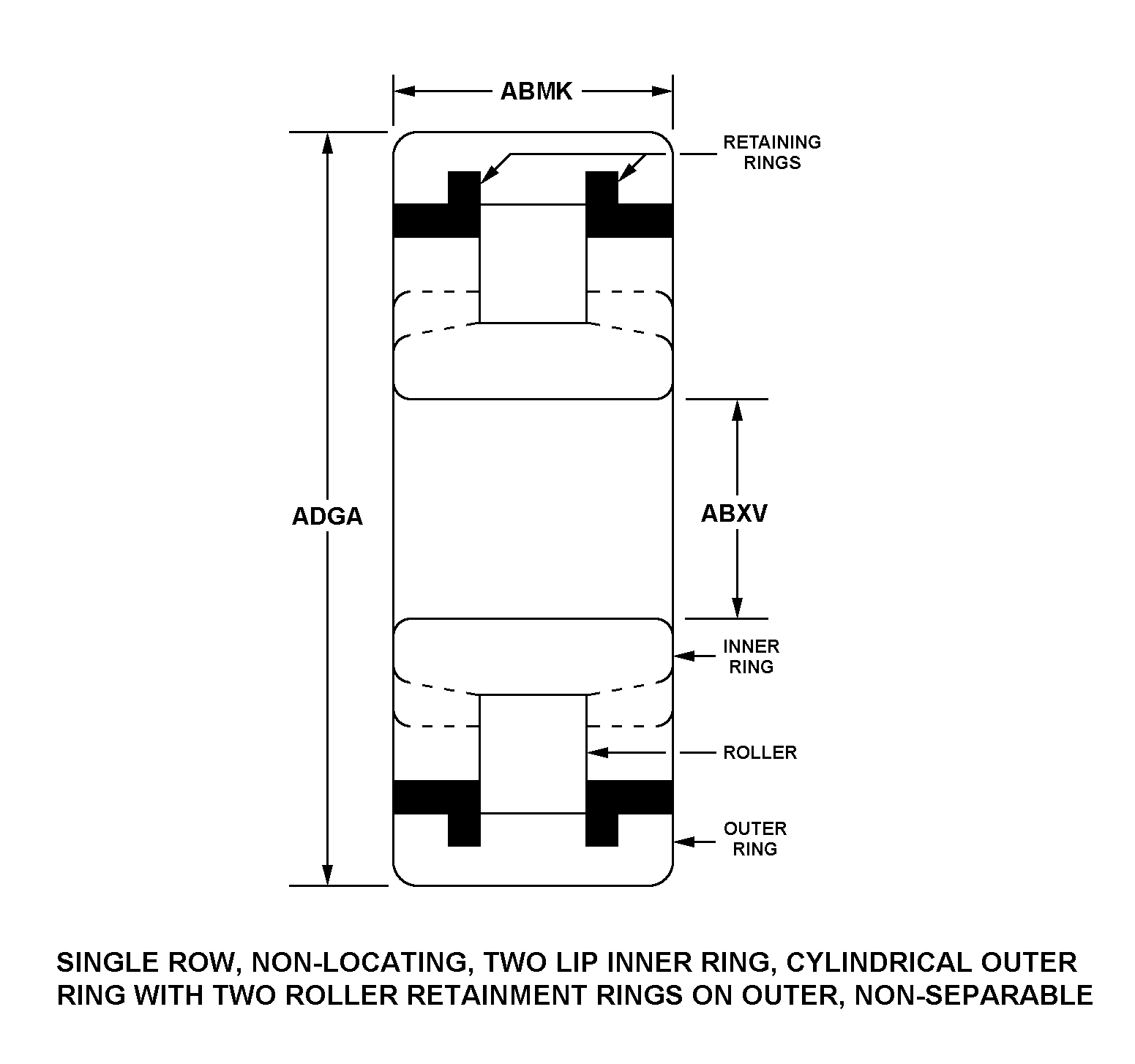

SINGLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, NON-SEPARABLE
Cross Reference | NSN 3110-00-100-7330
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| U0905TM | 24617 | GENERAL MOTORS CORP |
| U0905TM | 43334 | GENERAL MOTORS CORPDELCO MORAINE NDH DIV |
| U0905TM | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 20951 | 99551 | GOODRICH CORPORATIONDIV POWER TRANSMISSION SYSTEMS |
| B20951 | 99551 | GOODRICH CORPORATIONDIV POWER TRANSMISSION SYSTEMS |
| 170739A | 52676 | SKF USA INC. |
| I70739A | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-100-7330
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE ROW, NON-LOCATING, TWO LIP INNER RING, CYLINDRICAL OUTER RING WITH TWO ROLLER RETAINMENT RINGS ON OUTER, NON-SEPARABLE |
| OVERALL WIDTH | 11.00 MILLIMETERS NOMINAL |
| BORE DIAMETER | 11.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 35.00 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
