NSN 3110-00-100-8223
Part Details | ANNULAR BALL BEARING
3110-00-100-8223 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: L3315537423, L3315-5-37423, A2721PC8, 54874604, 37423, 2309M, 2309EM, 3110-00-100-8223, 00-100-8223, 3110001008223, 001008223
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-100-8223 | 00014 ( BEARING, BALL, ANNULAR ) |

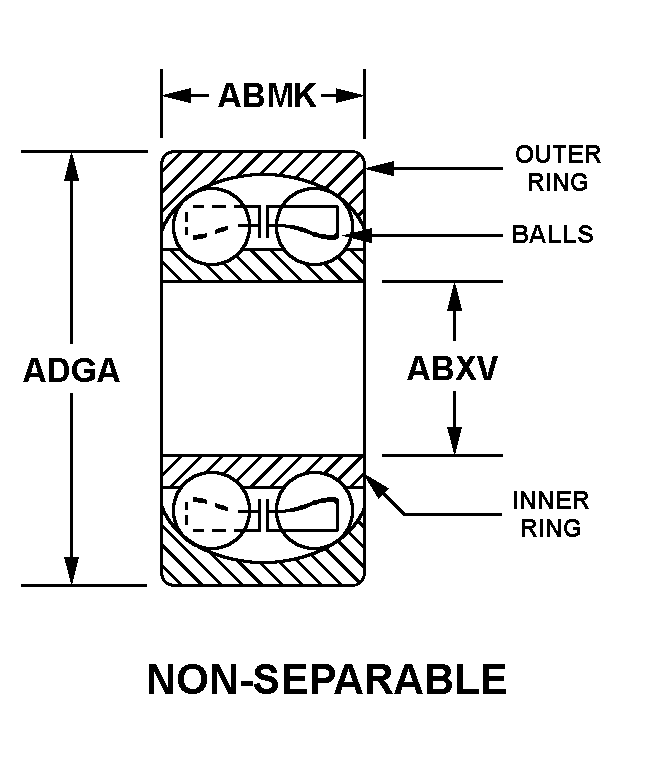

REFERENCE DRAWINGS & PICTURES
NON-SEPARABLE
Cross Reference | NSN 3110-00-100-8223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L3315-5-37423 | 71871 | ALFA LAVAL INC. |
| A2721PC8 | 71871 | ALFA LAVAL INC. |
| 54874604 | 71871 | ALFA LAVAL INC. |
| 37423 | 71871 | ALFA LAVAL INC. |
| 2309M | 52676 | SKF USA INC. |
| 2309EM | 52676 | SKF USA INC. |
Technical Data | NSN 3110-00-100-8223
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | NON-SEPARABLE |
| OVERALL WIDTH | 36.0 MILLIMETERS NOMINAL |
| BORE DIAMETER | 45.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 100.00 MILLIMETERS NOMINAL |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | INWARD CONVERGENT |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| ALIGNMENT TYPE | SELF-ALIGNING |
| SELF-ALIGNMENT LOCATION | INTERNAL |
| LOAD DIRECTION | ANGULAR |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
