NSN 3110-00-103-7244
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-103-7244 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 488672, 748015, 488672, 488672, 748015, 488680, 488679, 488675, 488673, 488672, 771872, 3110-00-103-7244, 00-103-7244, 3110001037244, 001037244
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUN 19, 1968 | 00-103-7244 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

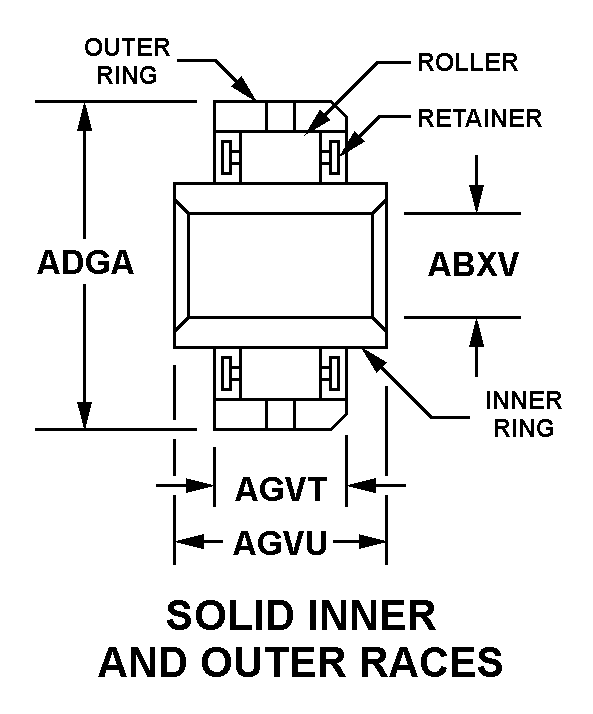

SOLID INNER AND OUTER RACES
Cross Reference | NSN 3110-00-103-7244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 488672 | 52676 | SKF USA INC. |
| 748015 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 488672 | 38443 | SKF USA INC.DBA SKF AEROENGINE NORTH AMERICA |
| 488672 | 52661 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT & WHITNEY |
| 748015 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 488680 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 488679 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 488675 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 488673 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 488672 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 771872 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3110-00-103-7244
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SOLID INNER AND OUTER RACES |
| BORE DIAMETER | 5.1177 INCHES MINIMUM AND 5.1181 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 7.0861 INCHES MINIMUM AND 7.0866 INCHES MAXIMUM |
| OUTER RING WIDTH | 0.8611 INCHES MINIMUM AND 0.8661 INCHES MAXIMUM |
| INNER RING WIDTH | 1.0186 INCHES MINIMUM AND 1.0236 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | FORGED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0036 INCHES MINIMUM AND R0.0052 INCHES MAXIMUM |
| SPECIAL FEATURES | SILVER PLATE CAGE PER AMS 2412 0.0005-0.0015 THK ON LAND RIDING SURF AND ROLLER POCKETS NO STRIKE METAL REQD BAKE 475-500F FOR 2 HRS TO CHECK FOR BOND |
