NSN 3110-00-103-7246
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-103-7246 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 481358, 481357, 3110-00-103-7246, 00-103-7246, 3110001037246, 001037246
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 22, 1981 | 00-103-7246 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

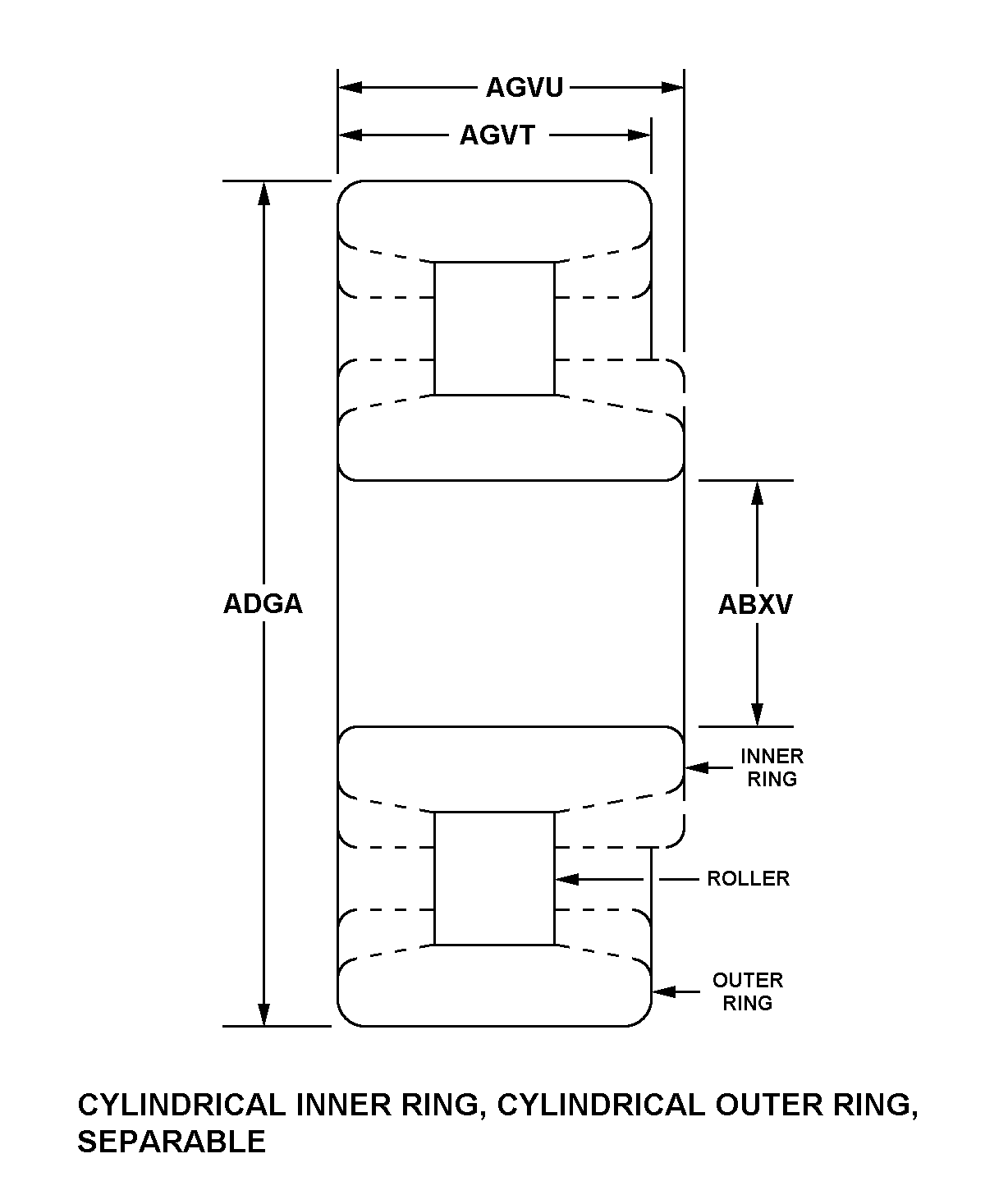

CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-103-7246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 481358 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
| 481357 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 3110-00-103-7246
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING, SEPARABLE |
| BORE DIAMETER | 108.0 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 144.0 MILLIMETERS NOMINAL |
| OUTER RING WIDTH | 24.0 MILLIMETERS NOMINAL |
| INNER RING WIDTH | 25.0 MILLIMETERS NOMINAL |
| STANDARD TOLERANCE DESIGNATION | ABEC NO.5 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | NONLOCATING |
| INTERNAL CLEARANCE | R0.0052 INCHES MINIMUM AND R0.0064 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | ACFT ENG TF-33 |
