NSN 3110-00-106-2911
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-106-2911 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: GR40SSMI31, GR40SSMI31, 3110-00-106-2911, 00-106-2911, 3110001062911, 001062911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 26, 1968 | 00-106-2911 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

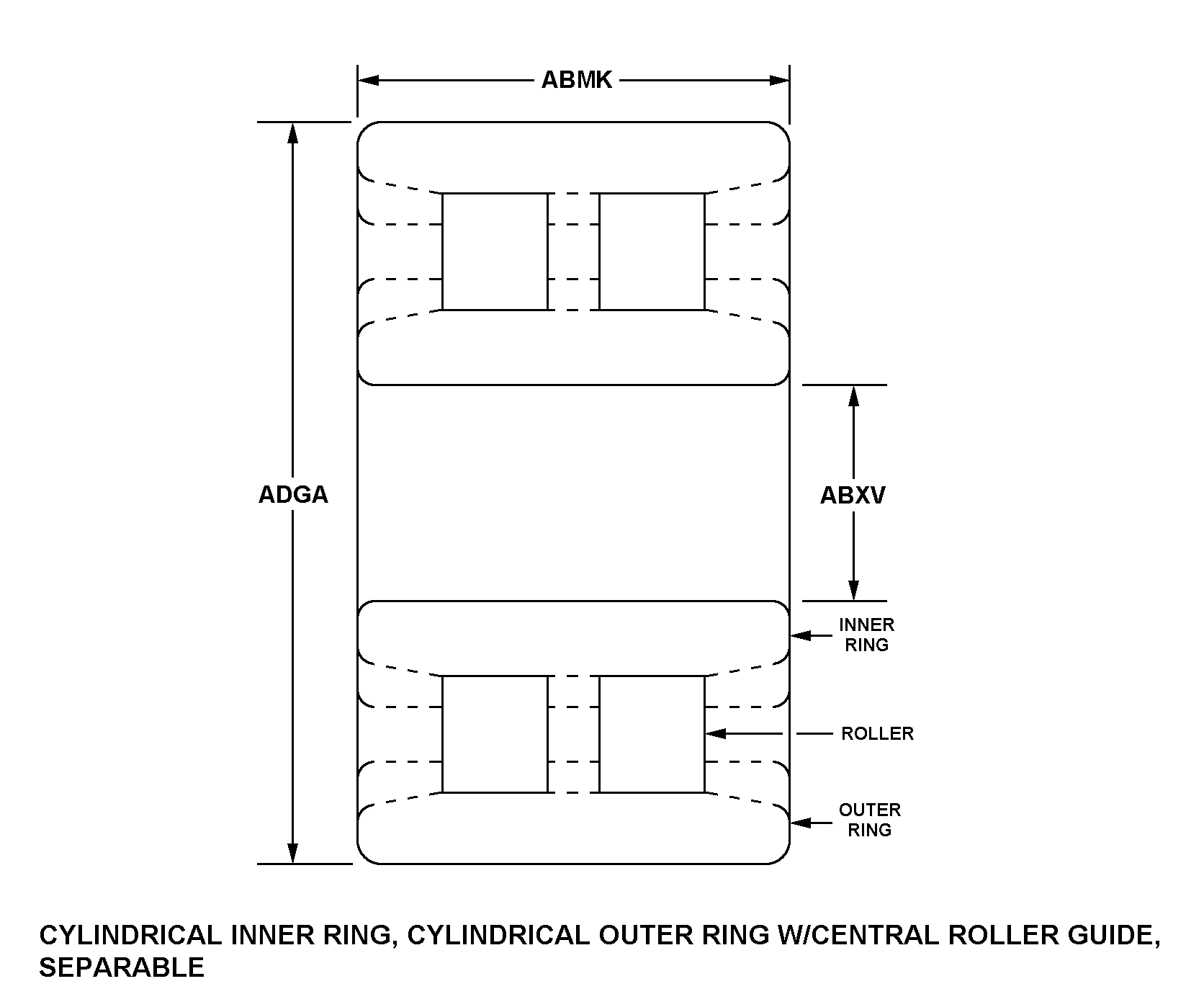

CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING W/CENTRAL ROLLER GUIDE, SEPARABLE
Cross Reference | NSN 3110-00-106-2911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GR40SSMI31 | 39317 | MCGILL MANUFACTURING COMPANY INCUSE CAGE CODE 92563 FOR CATALOGING. |
| GR40SSMI31 | 92563 | MCGILL MANUFACTURING COMPANY, INC. |
Technical Data | NSN 3110-00-106-2911
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL INNER RING, CYLINDRICAL OUTER RING W/CENTRAL ROLLER GUIDE, SEPARABLE |
| OVERALL WIDTH | 1.7600 INCHES NOMINAL |
| BORE DIAMETER | 1.9375 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 3.2500 INCHES NOMINAL |
| STANDARD TOLERANCE DESIGNATION | AFBMA STD TOLERANCE FOR INDUSTRIAL NEEDLE BEARINGS |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| LOCATING FEATURE | NONLOCATING |
| SPECIAL FEATURES | OIL HOLE AND OIL GROOVE IN INNER AND OUTER RACE |
