NSN 3110-00-106-3530
Part Details | CYLINDRICAL ROLLER BEARING
3110-00-106-3530 A nonadjustable roller bearing consisting of a single or multiple-row of hardened cylindrical rollers and a retainer used with or without inner or oute r rings. Excludes BEARING, ROLLER, AIRFRAME.
Alternate Parts: 32829, 288946, 3110-00-106-3530, 00-106-3530, 3110001063530, 001063530
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JUL 19, 1968 | 00-106-3530 | 00015 ( BEARING, ROLLER, CYLINDRICAL ) |
REFERENCE DRAWINGS & PICTURES

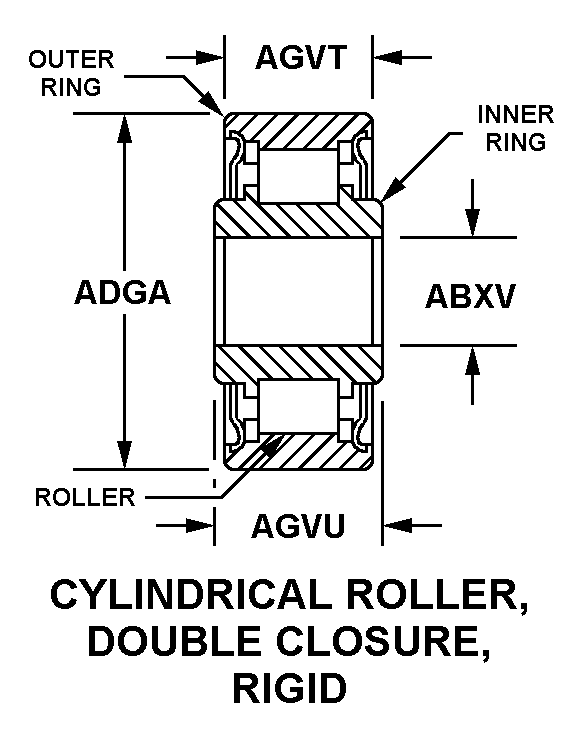

CYLINDRICAL ROLLER, DOUBLE CLOSURE, RIGID
Cross Reference | NSN 3110-00-106-3530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 32829 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 288946 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
Technical Data | NSN 3110-00-106-3530
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CYLINDRICAL ROLLER, DOUBLE CLOSURE, RIGID |
| BORE DIAMETER | 3.9382 INCHES MINIMUM AND 3.9400 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 6.6924 INCHES MINIMUM AND 6.6929 INCHES MAXIMUM |
| OUTER RING WIDTH | 1.1377 INCHES MINIMUM AND 1.1417 INCHES MAXIMUM |
| INNER RING WIDTH | 1.2003 INCHES MINIMUM AND 1.2043 INCHES MAXIMUM |
| STANDARD TOLERANCE DESIGNATION | RBEC NO.1 |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| RETAINER FABRICATION METHOD | MACHINED |
| LOCATING FEATURE | TWO DIRECTION |
| INTERNAL CLEARANCE | R0.0020 INCHES MINIMUM AND R0.0036 INCHES MAXIMUM |
| SPECIAL FEATURES | ENGINEERING CRITICAL |
