Part Details | ANNULAR BALL BEARING
3110-00-112-1016 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 219067, 3110-00-112-1016, 00-112-1016, 3110001121016, 001121016
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | AUG 23, 1968 | 00-112-1016 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

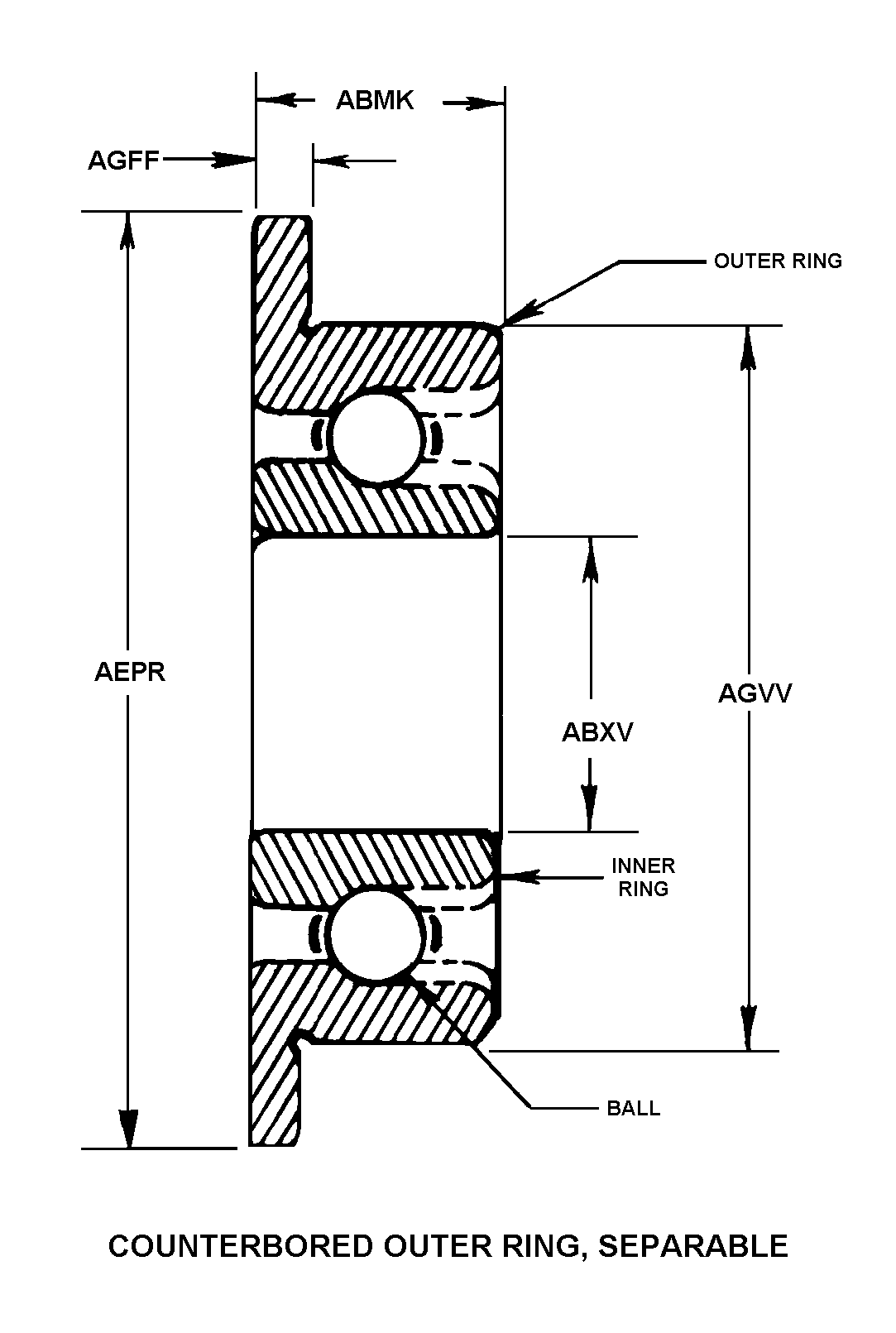

COUNTERBORED OUTER RING, SEPARABLE
Cross Reference | NSN 3110-00-112-1016
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 219067 | 62983 | EATON AEROSPACE LLC |
Technical Data | NSN 3110-00-112-1016
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | COUNTERBORED OUTER RING, SEPARABLE |
| OVERALL WIDTH | 0.6550 INCHES NOMINAL |
| BORE DIAMETER | 0.9378 INCHES MINIMUM AND 0.9382 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.8090 INCHES MINIMUM AND 1.8180 INCHES MAXIMUM |
| FLANGE WIDTH | 0.0600 INCHES MINIMUM AND 0.0620 INCHES MAXIMUM |
| OUTER RING OUTSIDE DIAMETER | 1.6869 INCHES MINIMUM AND 1.6874 INCHES MAXIMUM |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | GROUND |
| ALIGNMENT TYPE | RIGID |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
| SPECIAL FEATURES | INNER RING 0.2565 IN. WIDE,WITH RACES LOCATED 0.3985 IN. FROM LEFT CORNER OF OUTER RING BODY AND FLANGE,FLUSH WITH RIGHT CORNER OF OUTER RING; FOUR 0.177 IN. DIA MIN TO 0.197 IN. DIA MAX THRU HOLES IN OUTER RING,EACH SPACED 30.0 DEG ABOVE AND BELOW HOREZ CL,CENTERED 0.164 IN. FROM OUTER RING BODY AND FLANGE CORNER |
