NSN 3110-00-112-5522
Part Details | ANNULAR BALL BEARING
3110-00-112-5522 A cylindrical device in which the inner or outer ring turns upon a single or double row of hardened balls which roll easily between the two rings, thus minimizing friction. For items with faces specially ground for duplex mounting see BEARING, BALL, DUPLEX. Excludes BEARING, BALL, AIRFRAME.
Alternate Parts: 121641, 1216-41, 121641, 1216-41, 525, 121641, 1216-41, 1022445PC565, 102-244-5PC565, 3110-00-112-5522, 00-112-5522, 3110001125522, 001125522
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 31 | JAN 01, 1963 | 00-112-5522 | 00014 ( BEARING, BALL, ANNULAR ) |
REFERENCE DRAWINGS & PICTURES

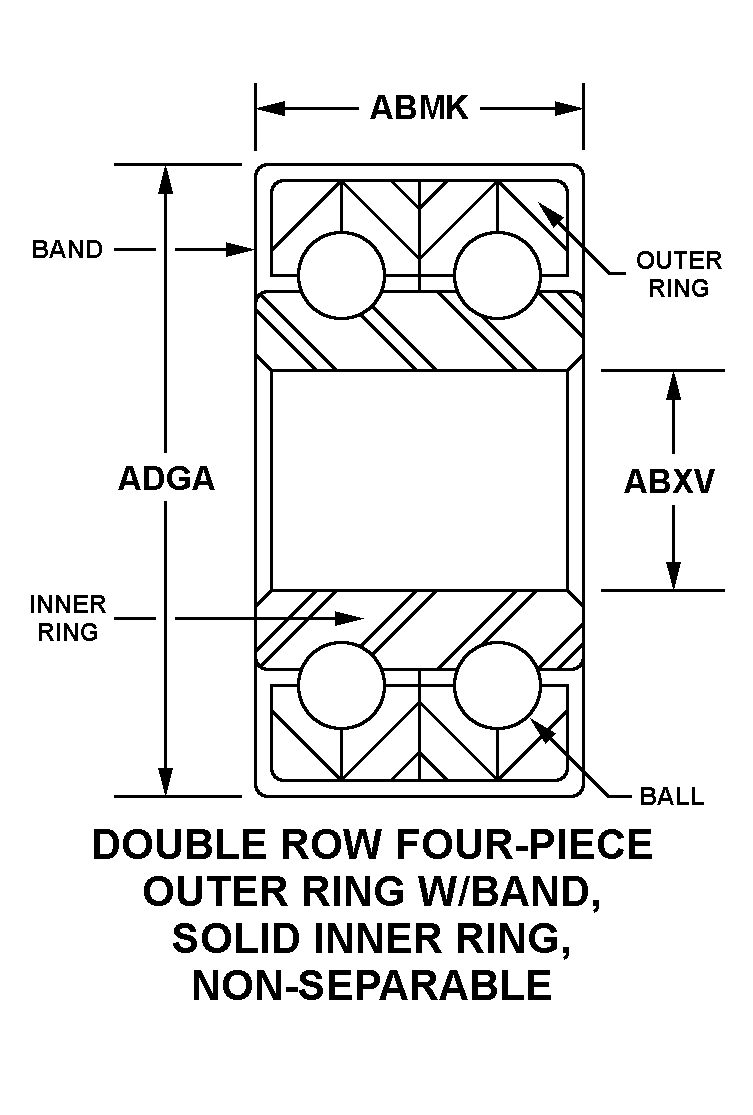

DOUBLE ROW FOUR-PIECE OUTER RING WITH BAND, SOLID INNER RING, NON-SEPARABLE
Cross Reference | NSN 3110-00-112-5522
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1216-41 | 43766 | SKF INDUSTRIES INCNICE BEARING PRODUCTS DIV |
| 1216-41 | 52676 | SKF USA INC. |
| 525 | 58265 | STRUTHERS WELLS CORP |
| 1216-41 | 58265 | STRUTHERS WELLS CORP |
| 102-244-5PC565 | 58265 | STRUTHERS WELLS CORP |
Technical Data | NSN 3110-00-112-5522
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | DOUBLE ROW FOUR-PIECE OUTER RING WITH BAND, SOLID INNER RING, NON-SEPARABLE |
| OVERALL WIDTH | 0.8650 INCHES MINIMUM AND 0.8850 INCHES MAXIMUM |
| BORE DIAMETER | 1.0000 INCHES MINIMUM AND 1.0050 INCHES MAXIMUM |
| OVERALL OUTSIDE DIAMETER | 2.0000 INCHES MINIMUM AND 2.0050 INCHES MAXIMUM |
| INTERNAL FIT-UP CONTACT ANGULAR DIRECTION | PRIMARILY RADIAL |
| BORE SHAPE | STRAIGHT |
| SURFACE FINISH | UNGROUND |
| LOAD DIRECTION | RADIAL |
| INTERNAL FIT-UP DESIGNATION | STANDARD |
